Training System Temperature Control
Product Code : JA-AM-6471

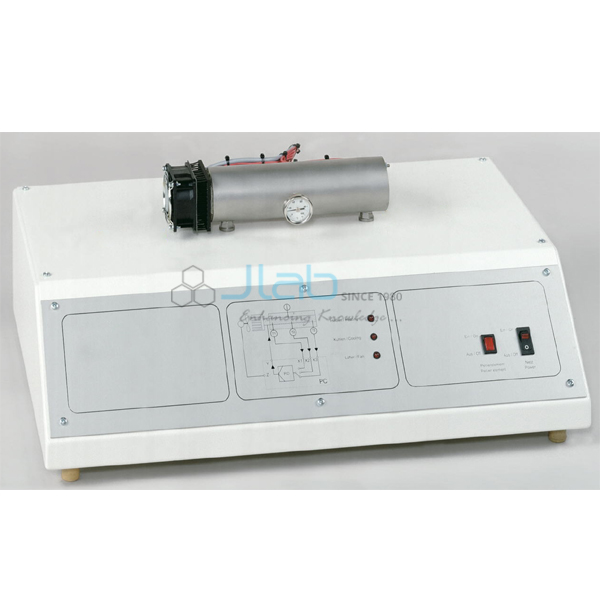

The Training System Temperature Control (SKU JA-AM-6471) is a compact experimental unit for temperature control of a heated metal bar. A Peltier element heats and cools a 20 x 200 mm aluminium bar, and temperature sensors at three points along its axis show the thermal lags, while a software-activated fan generates disturbances. The controlled system can also be simulated in software, and a process schematic is on the front panel. It is supplied by JaincoLab for control engineering laboratories.
Specifications
The bar is aluminium, 20 mm diameter by 200 mm long; the DC-operated Peltier element draws 38.2 W at 300 K and 44.3 W at 50°C; the 2 W fan moves up to 40 m³/h; sensors, thermometer and control range all cover 0-100°C.
| Product | Training System Temperature Control |
| SKU | JA-AM-6471 |
| Controlled object | Aluminium bar, D x L 20 x 200 mm |
| Heating and cooling | Peltier element, DC operated; 38.2 W at 300 K, 44.3 W at 50°C |
| Temperature sensors | 3 points along the bar axis; 0-100°C |
| Thermometer | 0-100°C |
| Disturbance | Software-activated fan, 2 W, max. 40 m³/h |
| Control range | 0-100°C |
| Simulation | Software-based controlled system simulation |
Experiments with the temperature control training system
Students control the bar temperature with the Peltier element, compare readings at the three sensors to see thermal lag, and switch on the fan to test disturbance rejection.
- Closed loop temperature control
- Thermal lag and dead time along a heated bar
- Heating and cooling with a Peltier element
- Disturbance response to forced air cooling
- Control engineering practicals
Scope of supply
This listing covers the temperature control training system with bar, Peltier element, sensors, fan and front-panel schematic. Accessories, spares and quantities are confirmed on the quotation. Software and PC are confirmed on the quotation.
Packing, MOQ and lead time
Lead time, MOQ and packing are set on each quotation for the ordered quantity and delivery destination. The Training System Temperature Control can be ordered for a single laboratory or as part of a complete laboratory package for a college or training programme.
Frequently asked questions
What is being controlled?
The temperature of a 20 x 200 mm aluminium bar heated and cooled by a Peltier element.
Why are there three sensors?
They sit at different points along the bar to show thermal lags.
How are disturbances produced?
By a software-activated fan of up to 40 m³/h.
What should a quotation request include?
Send SKU JA-AM-6471, the quantity and the delivery destination.
