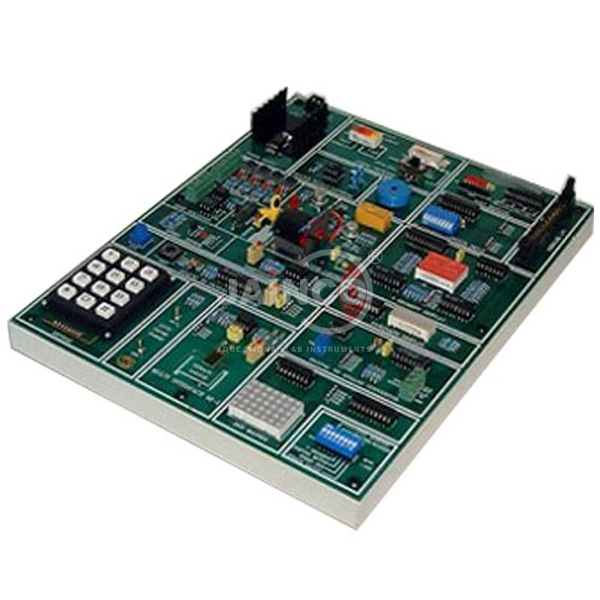

OPT Accessories Interface Microprocessor Trainer
Product Code : JA-AM-9535
The OPT Accessories Interface Microprocessor Trainer (SKU JA-AM-9535) is a set of optional interface modules that extend a microprocessor trainer to real input and output devices. The listing covers sixteen interfaces, including elevator, stepper motor, traffic lights, 4-digit 7-segment LED display, keyboard, several ADC and DAC interfaces, a temperature sensor, opto-isolated input and output, relay output, a music tone generator and a real-time clock. This microprocessor interface set is supplied by JaincoLab for electronics and embedded systems laboratories.
Specifications
The set lists 16 interface modules for connection to a microprocessor trainer; the compatible trainer, connectors and power requirements are not listed in the product data and are confirmed on the quotation.
| Product | OPT Accessories Interface Microprocessor Trainer |
| SKU | JA-AM-9535 |
| Motion and display | Elevator interface; stepper motor interface; traffic lights interface; 4-digit 7-segment LED display interface; keyboard module |
| Analog I/O | DAC for ADC and temperature sensor interface; 16-channel 8-bit ADC; 8-channel 12-bit ADC; dual slope ADC; dual DAC |
| Digital I/O | Opto-isolated input; opto-isolated output; relay output; logic controller interface |
| Other | Music tone generator interface; real-time clock interface |
Applications of the microprocessor interface set
Students connect each module to the trainer and write programs that drive motors, displays and relays or read ADCs, sensors and keys, learning practical interfacing one device at a time.
- Stepper motor and elevator control programs
- Traffic light sequencing
- Reading analog signals with 8-bit, 12-bit and dual slope ADCs
- Generating waveforms and tones with DACs
- Opto-isolated and relay interfacing for control
Scope of supply
This listing covers the interface modules listed in the specification table. Accessories, spares and quantities are confirmed on the quotation. The microprocessor trainer they connect to is quoted separately.
Packing, MOQ and lead time
Lead time, MOQ and packing are set on each quotation for the ordered quantity and delivery destination. The OPT Accessories Interface Microprocessor Trainer can be ordered for a single laboratory or as part of a complete laboratory package for a college or training programme.
Frequently asked questions
How many interfaces are listed?
Sixteen, from stepper motor and traffic lights to ADC, DAC, relay and real-time clock interfaces.
Is the microprocessor trainer included?
No, these are accessory interfaces for a trainer quoted separately.
Which ADC interfaces are there?
A 16-channel 8-bit ADC, an 8-channel 12-bit ADC, a dual slope ADC and a DAC-based ADC with temperature sensor.
What details are needed for a quote?
The SKU JA-AM-9535, the quantity required and the delivery destination; any detail not listed above is confirmed on the quotation.
