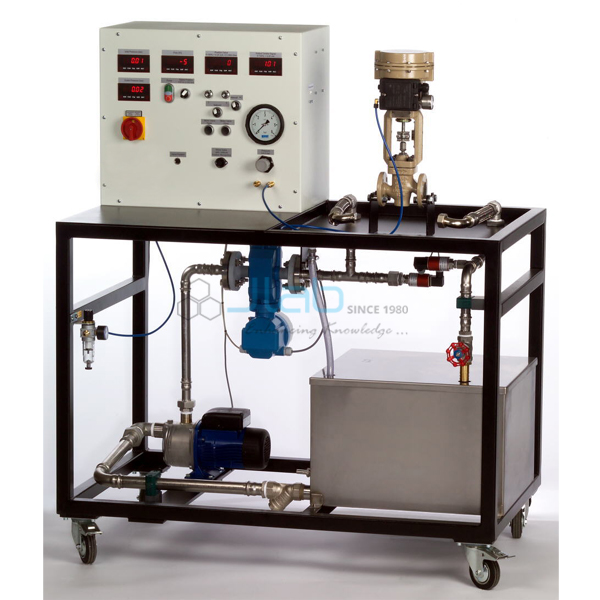

Test Stand for Control Valves
Product Code : JA-AM-6463
The Test Stand for Control Valves (SKU JA-AM-6463) is a hydraulic test rig for investigating and testing control valves. A water circuit with an approx. 90 litre tank and a two-stage centrifugal pump (max. head 20 m, max. flow 4 m³/h) feeds the valve under test, while an electromagnetic flow sensor and two pressure sensors measure flow and pressure drop. Electro-pneumatic and motorised valves can be actuated and their position fed back. It is supplied by JaincoLab for control and instrumentation laboratories.
Specifications
The stand has a 90 litre tank, a two-stage centrifugal pump of 20 m head and 4 m³/h, an electromagnetic flow sensor, two pressure sensors, a gate valve, valve actuation by current-signal potentiometer or pushbuttons, a manometer and pressure regulator, 24 V AC auxiliary power and 0-6 bar air for electro-pneumatic valves.
| Product | Test Stand for Control Valves |
| SKU | JA-AM-6463 |
| Water circuit | Tank approx. 90 litres; connections for control valves |
| Pump | Two-stage centrifugal; max. head 20 m; max. flow 4 m³/h |
| Measurement | Electromagnetic flow rate sensor; 2 pressure sensors for pressure drop over the valve |
| Flow adjustment | Gate valve |
| Valve actuation | Potentiometer with current signal (electro-pneumatic valves); pushbuttons (motorised valves) |
| Position feedback | Current signal (electro-pneumatic) or resistance teletransmitter (motorised) |
| Air supply | Manometer and pressure regulator; 0-6 bar for electro-pneumatic valves |
| Auxiliary power | 24 V AC |
Experiments with the control valve test stand
Students fit a valve, set its opening and record flow and pressure drop at each position to plot valve characteristics and compare electro-pneumatic and motorised actuators.
- Flow characteristics of control valves
- Pressure drop across a valve versus opening
- Kv value determination
- Comparing electro-pneumatic and motorised valve actuators
- Control valve practicals in instrumentation courses
Scope of supply
This listing covers the control valve test stand with water circuit, pump, sensors, actuation controls and air regulator. Accessories, spares and quantities are confirmed on the quotation. The control valves to be tested and the compressed air supply are confirmed on the quotation.
Packing, MOQ and lead time
Lead time, MOQ and packing are set on each quotation for the ordered quantity and delivery destination. The Test Stand for Control Valves can be ordered for a single laboratory or as part of a complete laboratory package for a college or training programme.
Frequently asked questions
What does the test stand measure?
Flow rate with an electromagnetic sensor and pressure drop over the valve with two pressure sensors.
Which valve types can be actuated?
Electro-pneumatic valves by current signal and motorised valves by pushbuttons.
What pump is fitted?
A two-stage centrifugal pump with max. head 20 m and max. flow 4 m³/h.
What details are needed for a quote?
The SKU JA-AM-6463, the quantity required and the delivery destination; any detail not listed above is confirmed on the quotation.
