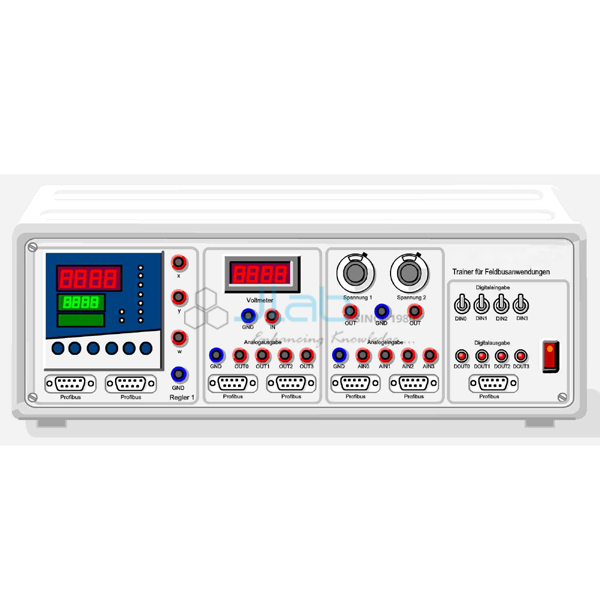

Trainer for Field Bus Applications
Product Code : JA-AM-6465
The Trainer for Field Bus Applications (SKU JA-AM-6465) is a benchtop trainer for the first steps in field bus technology, using Profibus DP as the example. Field buses network controllers, sensors and actuators at field level with the control room, over lines that can run to 1000 metres or more. On the trainer, terminal devices (slaves) are activated and read by a PC with a Profibus DP master interface, and the hardware is largely pre-configured so students can focus on programming. It is supplied by JaincoLab for automation laboratories.
Specifications
The trainer comprises Profibus DP terminal devices and a PC master interface with largely pre-configured hardware; the device list, PC and software licences are not listed in the product data and are confirmed on the quotation.
| Product | Trainer for Field Bus Applications |
| SKU | JA-AM-6465 |
| Type | Field bus trainer, benchtop |
| Protocol | Profibus DP |
| Master | PC with Profibus DP interface |
| Slaves | Various terminal devices |
| Hardware | Largely pre-configured |
Applications of the Profibus DP field bus trainer
Students configure the bus, address the slave devices from the PC master, and read and write their data, learning how field devices share one network.
- Basics of field bus technology
- Profibus DP master and slave configuration
- Reading sensors and driving actuators over the bus
- Software programming of a field bus system
- Automation and instrumentation practicals
Scope of supply
This listing covers the field bus trainer as described. Accessories, spares and quantities are confirmed on the quotation. PC, software and cables are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, packing and lead time for the Trainer for Field Bus Applications are stated on the quotation once the quantity and delivery destination are known. JaincoLab supplies single laboratory orders, bulk requirements for engineering colleges and polytechnics, and tender lots.
Frequently asked questions
Which field bus does it use?
Profibus DP.
How are the devices controlled?
A PC with a Profibus DP interface acts as master and activates and reads the slave devices.
Do students have to wire the hardware?
The hardware is largely pre-configured so students can concentrate on software programming.
What should a quotation request include?
Send SKU JA-AM-6465, the quantity and the delivery destination.
