Training System Flow Control
Product Code : JA-AM-6467

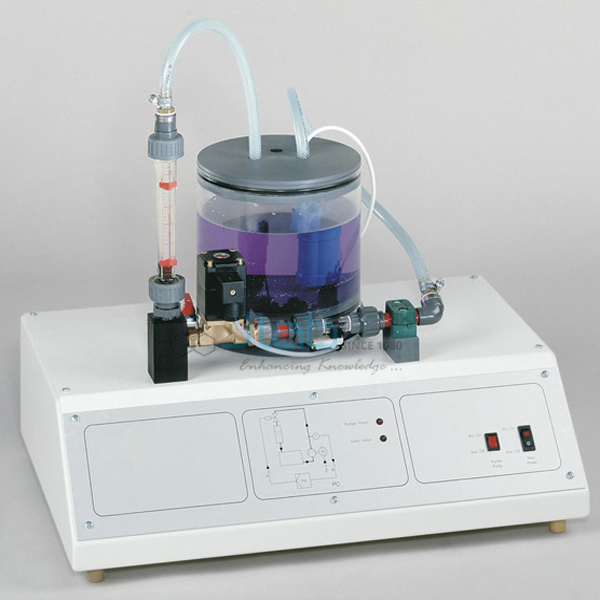

The Training System Flow Control (SKU JA-AM-6467) is a compact control engineering unit for learning flow control by experiment. A speed-controlled pump draws water from a transparent storage tank through a piping system with two flow meters: a rotameter for direct reading and a turbine wheel sensor whose signal goes to a software controller. The controller sets an electromagnetic proportional valve, and pump speed can be changed from the software to introduce disturbances. It is supplied by JaincoLab for control engineering laboratories.
Specifications
The unit has a transparent storage tank, a speed-controlled pump, a rotameter, a turbine wheel flow sensor, an electromagnetic proportional valve and PC software that acts as controller and evaluates experiments; flow range and power supply are not listed in the product data and are confirmed on the quotation.
| Product | Training System Flow Control |
| SKU | JA-AM-6467 |
| Process | Flow through a piping system from a transparent storage tank |
| Pump | Speed-controlled |
| Flow measurement | Rotameter (direct reading); turbine wheel flow sensor |
| Final control element | Electromagnetic proportional valve |
| Controller | Software controller on PC; disturbance by pump speed |
| Software | Integrated control and evaluation software |
Experiments with the flow control training system
Students close the flow loop through the software controller, change set points and pump speed disturbances, and compare the measured response for different controller settings.
- Closed loop flow control
- Controller parameter setting for a flow process
- Disturbance response to pump speed changes
- Comparing rotameter and turbine sensor readings
- Control engineering practicals
Scope of supply
This listing covers the flow control training system with tank, pump, flow meters, proportional valve and software. Accessories, spares and quantities are confirmed on the quotation. The PC is confirmed on the quotation.
Packing, MOQ and lead time
Lead time, MOQ and packing are set on each quotation for the ordered quantity and delivery destination. The Training System Flow Control can be ordered for a single laboratory or as part of a complete laboratory package for a college or training programme.
Frequently asked questions
How is the flow measured?
By a turbine wheel flow sensor for the controller and a rotameter for direct reading.
What does the controller adjust?
An electromagnetic proportional valve.
How are disturbances introduced?
By changing the pump speed from the software.
How do I request a price?
Share the SKU JA-AM-6467, the quantity and the delivery destination through the contact page or by email to [email protected].
Related products
- Training System Level Control
- Training System Pressure Control
- Training System Position Control
- Test Stand for Control Valves
For a complete laboratory, see the training workshop labs range, which covers applied machines, data acquisition, physics and chemical engineering equipment.
Request a quote
To get a quotation for the Training System Flow Control, send SKU JA-AM-6467, the quantity and the delivery destination through the JaincoLab contact page or email [email protected].
