Test Stand for Level Pressure Control
Product Code : JA-AM-6474

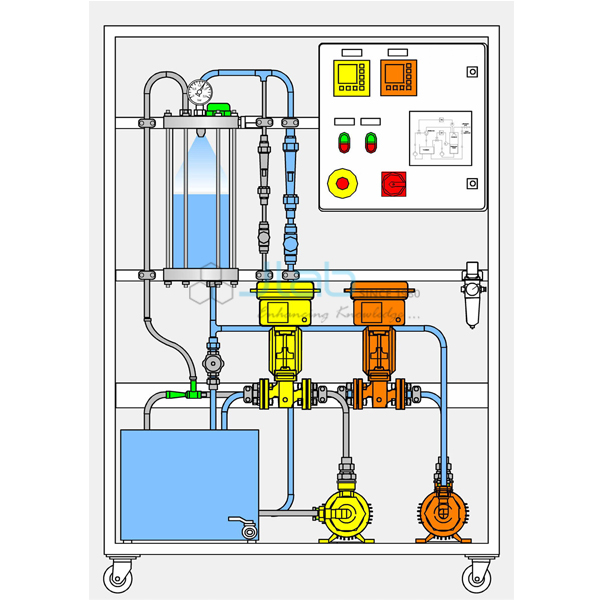

The Test Stand for Level Pressure Control (SKU JA-AM-6474) is a test stand for experiments on a multivariable control system, using a vacuum degassing model as an example of two interacting controlled variables. Vacuum and level in a process tank are controlled together and influence each other. The vacuum is produced by a water jet pump with its own water circuit, and two pneumatic control valves manage vacuum generation and discharge from the tank. It is supplied by JaincoLab for advanced control engineering laboratories.
Specifications
The stand has a closed water circuit, a process tank, a water jet vacuum pump with its own circuit, two pneumatic control valves and controllers with a Profibus DP interface for optional monitoring software; tank volume, ranges and utilities are not listed in the product data and are confirmed on the quotation.
| Product | Test Stand for Level Pressure Control |
| SKU | JA-AM-6474 |
| Controlled variables | Vacuum (pressure) and level in a process tank - interacting |
| Vacuum generation | Water jet pump with its own water circuit |
| Final control elements | 2 pneumatic control valves (vacuum generation, tank discharge) |
| Water system | Closed circuit |
| Controllers | With Profibus DP interface for optional process control software |
Experiments with the level and pressure control test stand
Students tune the vacuum and level loops, observe how a change in one disturbs the other and study decoupling of an interacting two-variable system.
- Control of two interacting variables
- Vacuum degassing process model
- Loop interaction and decoupling
- Pneumatic control valve operation
- Advanced process control practicals
Scope of supply
This listing covers the level and pressure control test stand as described. Accessories, spares and quantities are confirmed on the quotation. The optional monitoring software, compressed air and PC are confirmed on the quotation.
Packing, MOQ and lead time
Packing, lead time and any minimum order for the Test Stand for Level Pressure Control are confirmed per quotation according to order size and destination. Bulk orders for institutes are supplied, and export consignments to buyers in Africa, the Middle East and South and South-East Asia are quoted on request.
Turnkey laboratory projects are a JaincoLab specialism. We manufacture and export equipment for education-ministry programmes, World Bank tenders and United Nations projects, with successful deliveries in many countries. If you are bidding for a similar tender, share the bill of quantities through our tenders page.
Frequently asked questions
Which variables are controlled?
Vacuum and level in a process tank, which are interdependent.
How is the vacuum produced?
By a water jet pump with its own water circuit.
Can the stand be monitored from a PC?
The controllers have a Profibus DP interface for optional process control software.
What should a quotation request include?
Send SKU JA-AM-6474, the quantity and the delivery destination.
