Disc Centrifuge
Product Code : JA-AM-6483

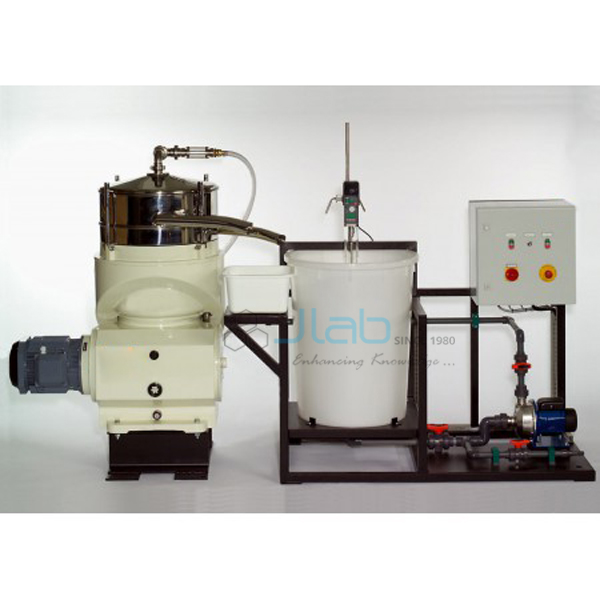

The Disc Centrifuge (SKU JA-AM-6483) is a unit for the continuous separation of emulsions with a disc stack centrifuge. An emulsion is made in a 200 litre HDPE stirred tank by a speed-controlled stirring machine with digital torque indicator and three interchangeable stirrers, then pumped by a centrifugal pump through a flow-adjusting valve into the centrifuge, whose speed is set by potentiometer up to 6480 rpm. The separated phase collects in a 14 litre tank. It is supplied by JaincoLab for chemical and process engineering laboratories.
Specifications
The centrifuge draws 7500 W, has a usable diameter of about 300 mm and runs up to 6480 rpm; the 140 W stirrer runs at 30-1000 rpm; the pump delivers up to 300 L/min at 9.5 m head; the stirred tank holds 200 litres and the collector 14 litres.
| Product | Disc Centrifuge |
| SKU | JA-AM-6483 |
| Disc centrifuge | 7500 W; usable diameter approx. 300 mm; max. 6480 rpm; speed by potentiometer |
| Stirring machine | 140 W; 30-1000 rpm; digital torque indicator |
| Stirrers | 2 paddle stirrers (3 and 10 holes); 1 three-blade stirrer |
| Pump | Centrifugal; max. 300 L/min; max. head 9.5 m; flow set by valve |
| Tanks | HDPE stirred tank 200 litres; collector tank 14 litres |
Experiments with the disc centrifuge unit
Students prepare an emulsion with a chosen stirrer and speed, feed it to the centrifuge at set flow and speed, and measure how completely the phases separate.
- Continuous separation of emulsions
- Effect of centrifuge speed on separation
- Effect of feed flow rate on separation
- Emulsion preparation and stirrer power
- Mechanical process engineering practicals
Scope of supply and ordering
This listing covers the disc centrifuge unit with stirred tank, stirring machine and stirrers, pump, valve and collector tank. Accessories, spares and quantities are confirmed on the quotation. Power supply and test liquids are confirmed on the quotation.
Lead time, MOQ and packing are set on each quotation for the ordered quantity and delivery destination. The Disc Centrifuge can be ordered for a single laboratory or as part of a complete laboratory package for a college or training programme.
Frequently asked questions
What is the centrifuge speed?
Up to 6480 rpm, set by potentiometer.
How is the emulsion made?
In a 200 litre HDPE tank with a 30-1000 rpm stirring machine and three interchangeable stirrers.
What is the pump capacity?
Up to 300 L/min at 9.5 m head.
