Training System Position Control
Product Code : JA-AM-6469

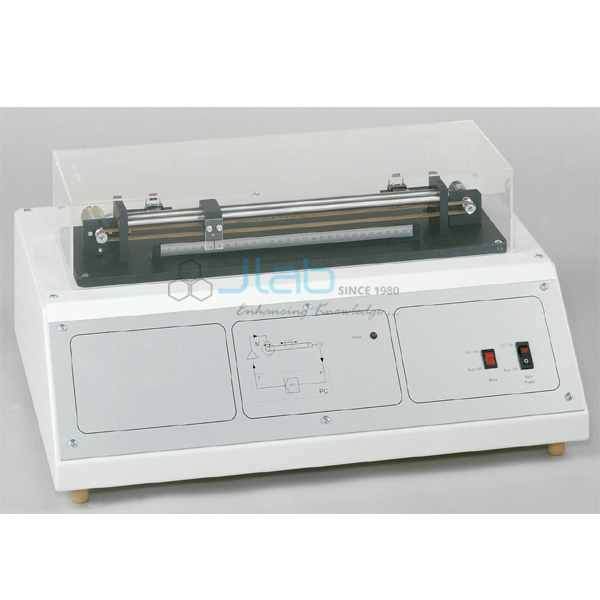

The Training System Position Control (SKU JA-AM-6469) is a compact experimental unit for linear position control. A carriage on a linear drive is moved by a geared DC motor over up to 300 mm, its position is measured by a rotary encoder, and two micro switches stop it at the end positions under a transparent protective cover. The controlled system can also be simulated in software. It is supplied by JaincoLab for control engineering and mechatronics laboratories.
Specifications
The DC motor has a transmission ratio of 50, a speed of 85 rpm and a torque of 200 Nmm; the carriage travels a maximum of 300 mm at up to 45 mm/s against a 0-300 mm scale.
| Product | Training System Position Control |
| SKU | JA-AM-6469 |
| Drive | Linear drive with geared DC motor |
| Motor | Transmission ratio i = 50; speed 85 rpm; torque 200 Nmm |
| Travel | Max. 300 mm; scale 0-300 mm |
| Max. traverse rate | 45 mm/s |
| Displacement sensor | Rotary encoder |
| Protection | Transparent cover; 2 end-position micro switches |
| Simulation | Software-based controlled system simulation |
Experiments with the position control training system
Students command target positions, tune the position controller and observe overshoot, settling and steady-state error as the carriage moves.
- Closed loop linear position control
- Controller tuning for a positioning drive
- Step response, overshoot and settling time
- Encoder-based displacement measurement
- Mechatronics and control practicals
Scope of supply and ordering
This listing covers the position control training system with carriage, drive, encoder, micro switches and cover. Accessories, spares and quantities are confirmed on the quotation. Software and PC are confirmed on the quotation.
Minimum order quantity, packing and lead time for the Training System Position Control are stated on the quotation once the quantity and delivery destination are known. JaincoLab supplies single laboratory orders, bulk requirements for engineering colleges and polytechnics, and tender lots.
Frequently asked questions
What travel does the carriage have?
Up to 300 mm, at a maximum of 45 mm/s.
How is position measured?
With a rotary encoder as displacement sensor.
What motor is fitted?
A geared DC motor with ratio 50, 85 rpm and 200 Nmm torque.
