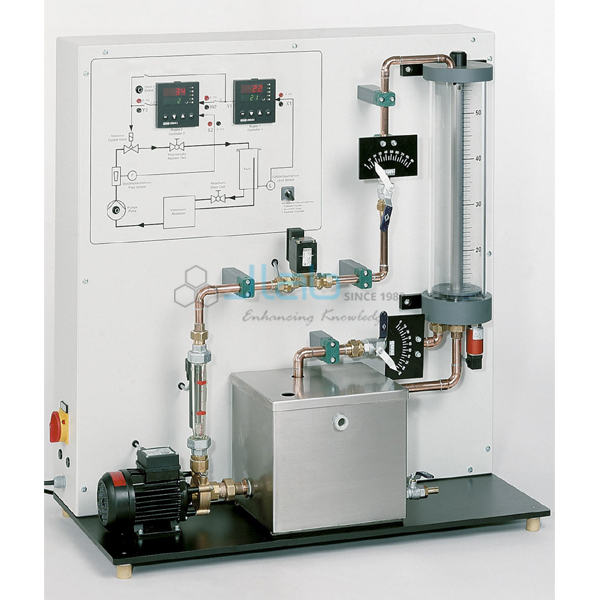

Flow / Level Control Demonstration Unit
Product Code : JA-AM-6472
The Flow / Level Control Demonstration Unit (SKU JA-AM-6472) is an experimental unit for controlling level and flow individually and in cascade. Level is measured by a pressure sensor and flow by a rotameter with electrical output, an electromagnetic proportional valve acts as control valve, and ball valves with scales create disturbances. Two digital industrial controllers can be set as P, PI or PID and linked in cascade, with key signals at lab jacks. It is supplied by JaincoLab for control engineering and instrumentation laboratories.
Specifications
The unit has a 15 litre stainless steel storage tank, a 3-stage 90 W pump of 83 L/min and 6 m head, a 0-100 mbar level pressure sensor, a 0-600 L/h rotameter with electrical output, a tank with overflow and scale and a large process schematic on the front panel.
| Product | Flow / Level Control Demonstration Unit |
| SKU | JA-AM-6472 |
| Storage tank | Stainless steel, 15 litres |
| Pump | 3-stage; 90 W; max. 83 L/min; max. head 6 m |
| Level measurement | Pressure sensor 0-100 mbar; tank with overflow and scale |
| Flow measurement | Rotameter with electrical output, 0-600 L/h |
| Control valve | Electromagnetic proportional valve |
| Controllers | 2 digital industrial controllers, P/PI/PID, cascade capable |
| Disturbances | Ball valves with scale |
| Signals | Key process variables at lab jacks |
Experiments with the flow and level control unit
Students run level and flow loops on their own and then in cascade, set P, PI and PID parameters and open the ball valves to test how each arrangement rejects disturbances.
- Level control and flow control as separate loops
- Cascade control of level with inner flow loop
- P, PI and PID controller settings
- Disturbance rejection with scaled ball valves
- Instrumentation and control practicals
Scope of supply
This listing covers the flow and level control unit with tank, pump, sensors, valves, two controllers and lab jacks. Accessories, spares and quantities are confirmed on the quotation. Recorder and PC are confirmed on the quotation.
Packing, MOQ and lead time
MOQ, lead time and packing for the Flow / Level Control Demonstration Unit are confirmed on each quotation for the quantity and delivery destination. Single units for one laboratory and complete sets for institutions or projects are both supplied.
JaincoLab manufactures and exports laboratory equipment for Ministry of Education programmes, World Bank-funded tenders and United Nations projects, and has executed these supplies successfully in many countries. Contractors bidding for such tenders can contact JaincoLab for specifications, quotations and turnkey tender supply.
Frequently asked questions
Can cascade control be studied?
Yes, the two digital controllers can be linked in cascade.
How are level and flow measured?
Level by a 0-100 mbar pressure sensor and flow by a 0-600 L/h rotameter with electrical output.
What pump is used?
A 3-stage pump of 90 W, 83 L/min and 6 m head.
What details are needed for a quote?
The SKU JA-AM-6472, the quantity required and the delivery destination; any detail not listed above is confirmed on the quotation.
