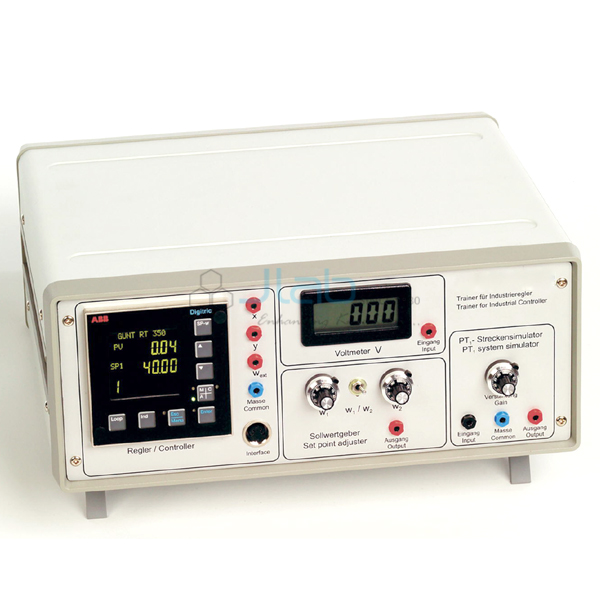

Trainer for Industrial Controllers
Product Code : JA-AM-6466
The Trainer for Industrial Controllers (SKU JA-AM-6466) familiarises students with the operation and function of an industrial process controller with freely accessible inputs and outputs. A signal generator produces defined input levels and step signals, a digital voltmeter measures inputs and outputs, and a simulated first-order lag lets the response and stability of a closed loop be investigated. The controller can be configured with its keys or from a PC with the supplied software. It is supplied by JaincoLab for control and instrumentation laboratories.
Specifications
The trainer has an industrial process controller, a signal generator, a digital voltmeter, a simulated first-order lag system and lab jacks for all signals, with PC configuration software supplied; the controller model and power supply are not listed in the product data and are confirmed on the quotation.
| Product | Trainer for Industrial Controllers |
| SKU | JA-AM-6466 |
| Controller | Industrial process controller, freely accessible inputs and outputs |
| Signal source | Signal generator for input levels and steps |
| Measurement | Digital voltmeter |
| Controlled system | Simulated first-order lag; external system models can be connected |
| Connections | Lab jacks for all signals (x/y plotter or line recorder) |
| Configuration | Front keys or PC software (supplied) |
Applications of the industrial controller trainer
Students configure the controller, close the loop around the simulated first-order lag and record step responses to study how controller settings affect stability.
- Configuring an industrial process controller
- Closed loop response and stability with a first-order lag
- Step and level input tests
- Recording signals on a plotter or recorder
- Controlling external system models
Scope of supply
This listing covers the industrial controller trainer with controller, signal generator, voltmeter, simulated system and configuration software. Accessories, spares and quantities are confirmed on the quotation. Plotter, recorder and PC are confirmed on the quotation.
Packing, MOQ and lead time
Packing, lead time and any minimum order for the Trainer for Industrial Controllers are confirmed per quotation according to order size and destination. Bulk orders for institutes are supplied, and export consignments to buyers in Africa, the Middle East and South and South-East Asia are quoted on request.
Turnkey laboratory projects are a JaincoLab specialism. We manufacture and export equipment for education-ministry programmes, World Bank tenders and United Nations projects, with successful deliveries in many countries. If you are bidding for a similar tender, share the bill of quantities through our tenders page.
Frequently asked questions
What can be measured?
Input and output signals with the digital voltmeter, and all signals are available at lab jacks.
Can the controller be set from a PC?
Yes, configuration software is supplied, as well as manual setting with keys.
Can external systems be controlled?
Yes, external system models can be connected.
What details are needed for a quote?
The SKU JA-AM-6466, the quantity required and the delivery destination; any detail not listed above is confirmed on the quotation.
