Training System Level Control
Product Code : JA-AM-6468

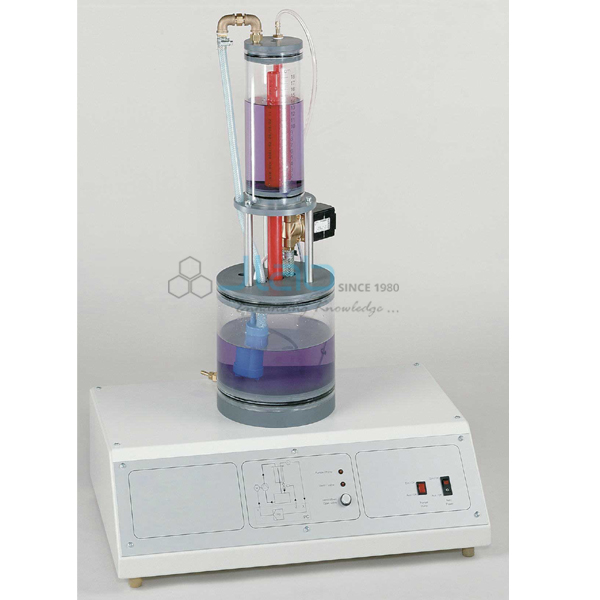

The Training System Level Control (SKU JA-AM-6468) is a compact experimental unit for level control in control engineering. A speed-controlled pump fills a 1200 mL transparent tank with overflow and graduated scale from a 3700 mL storage tank, the level is measured by a 0-30 mbar pressure sensor, and a proportional valve in the tank outlet generates disturbances. A process schematic with controller type selection is on the front panel. It is supplied by JaincoLab for control and instrumentation laboratories.
Specifications
The unit has an 18 W pump of max. 8 L/min and 6 m head, a 0-30 mbar (0-300 mm) level pressure sensor, an outlet proportional valve with Kvs 0.7 m³/h, a 1200 mL level tank and a 3700 mL storage tank.
| Product | Training System Level Control |
| SKU | JA-AM-6468 |
| Level tank | Transparent, 1200 mL, with overflow and graduated scale |
| Storage tank | 3700 mL |
| Pump | Speed-controlled; 18 W; max. 8 L/min; max. head 6 m |
| Level measurement | Pressure sensor 0-30 mbar (0-300 mm) |
| Disturbance | Electromagnetic proportional valve in tank outlet, Kvs 0.7 m³/h |
| Front panel | Process schematic with controller type selection |
Experiments with the level control training system
Students select a controller type, set the level set point and use the outlet valve to apply disturbances, recording how quickly and steadily the level returns.
- Closed loop level control
- Comparing controller types on one process
- Disturbance response via the outlet valve
- Level measurement by pressure sensor
- Control engineering practicals
Scope of supply
This listing covers the level control training system with tanks, pump, pressure sensor, proportional valve and front-panel schematic. Accessories, spares and quantities are confirmed on the quotation. Software and PC are confirmed on the quotation.
Packing, MOQ and lead time
MOQ, lead time and packing for the Training System Level Control are confirmed on each quotation for the quantity and delivery destination. Single units for one laboratory and complete sets for institutions or projects are both supplied.
JaincoLab supports tender contractors as well as institutions: we manufacture and export laboratory equipment for Ministry of Education projects, World Bank-funded tenders and United Nations programmes, executed successfully in many countries, and we specialise in turnkey laboratory set-ups. Contact us through the tenders page early in your bid preparation.
Frequently asked questions
What is the tank capacity?
The level-controlled tank holds 1200 mL and the storage tank 3700 mL.
How is the level measured?
With a 0-30 mbar (0-300 mm) pressure sensor.
How are disturbances created?
By an electromagnetic proportional valve (Kvs 0.7 m³/h) in the tank outlet.
What should a quotation request include?
Send SKU JA-AM-6468, the quantity and the delivery destination.
