Flow through Particle Layers
Product Code : JA-AM-6487

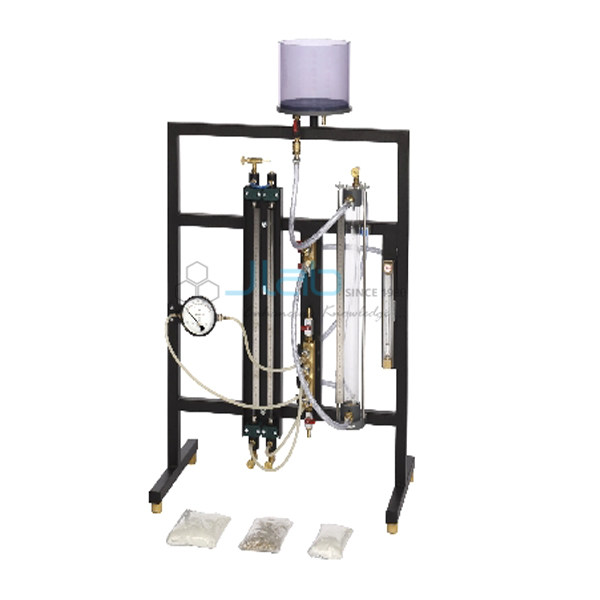

The Flow through Particle Layers unit (SKU JA-AM-6487) is a bench apparatus for investigating the fluid mechanics of flow through packed beds and fluidised beds, as found in reactors and in cake and depth filtration. A fillable glass test tank with a sintered-metal plate as the base for bulk solids can be flowed through with water from either end: from the top for packed bed studies and from below for fluidisation. Water is taken from the laboratory supply. It is supplied by JaincoLab for chemical and process engineering laboratories.
Specifications
The unit has a fillable glass test tank with a sintered-metal support plate, connections for water flow from the top or the bottom and a laboratory water connection; tank dimensions, flow and pressure measuring ranges are not listed in the product data and are confirmed on the quotation.
| Product | Flow through Particle Layers |
| SKU | JA-AM-6487 |
| Test tank | Glass, fillable with bulk solids |
| Bed support | Sintered-metal plate |
| Flow direction | Top-down (packed bed) or bottom-up (fluidised bed) |
| Water supply | Laboratory water connection |
Experiments with the particle layer flow unit
Students fill the glass tank with a bulk solid, measure pressure loss against flow for downward flow through the packed bed and then reverse the flow to find the point of fluidisation.
- Pressure loss in packed beds (Carman-Kozeny)
- Onset of fluidisation and minimum fluidisation velocity
- Bed expansion in a fluidised bed
- Comparing different bulk solids and particle sizes
- Mechanical operations practicals
Scope of supply
This listing covers the particle layer flow unit with glass test tank and sintered plate as described. Accessories, spares and quantities are confirmed on the quotation. Bulk solids for filling and measuring instruments are confirmed on the quotation.
Packing, MOQ and lead time
Lead time, MOQ and packing are set on each quotation for the ordered quantity and delivery destination. The Flow through Particle Layers can be ordered for a single laboratory or as part of a complete laboratory package for a college or training programme.
Frequently asked questions
What can be studied?
Flow through packed beds and fluidised beds.
How is flow direction changed?
Water can enter from the top for packed beds or from the bottom for fluidisation.
What supports the bed?
A sintered-metal plate at the base of the glass tank.
What details are needed for a quote?
The SKU JA-AM-6487, the quantity required and the delivery destination; any detail not listed above is confirmed on the quotation.
