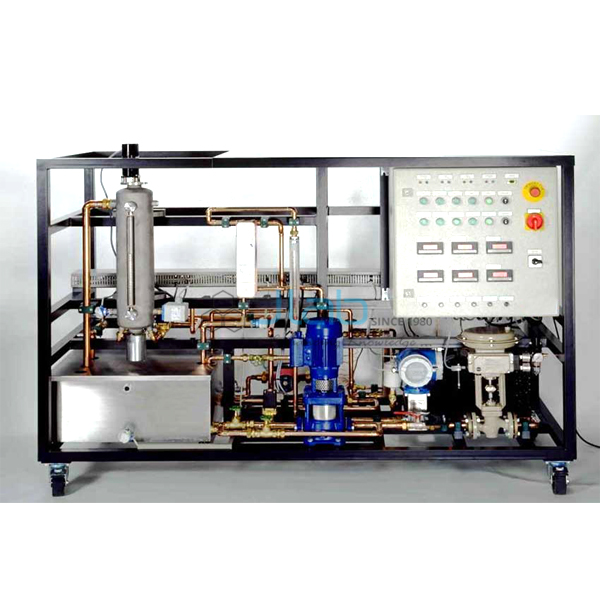

Industrial Process Control Rig
Product Code : JA-AM-6477
The Industrial Process Control Rig (SKU JA-AM-6477) is a self-contained rig for experiments in process control and control systems. Level, flow and temperature control can all be studied, as well as cascade control, and six different faults can be simulated and found. At its core is a digital universal controller whose function, parameter setting and optimisation are studied in detail, and a programmable logic controller is included. It is supplied by JaincoLab for instrumentation and automation laboratories.
Specifications
The rig is assembled from industrial components around a digital universal controller and a PLC, with fault simulation and PC-based process visualisation (PC available as an accessory); ranges and utilities are not listed in the product data and are confirmed on the quotation.
| Product | Industrial Process Control Rig |
| SKU | JA-AM-6477 |
| Loops | Level, flow and temperature; cascade control |
| Controller | Digital universal controller |
| PLC | Programmable logic controller included |
| Fault simulation | 6 different faults |
| Visualisation | PC and software (PC available as accessory) |
| Construction | Self-contained, industrial components |
Experiments with the industrial process control rig
Students configure and optimise the universal controller on level, flow and temperature loops, build a cascade, program the PLC and find faults switched in by the instructor.
- Level, flow and temperature control
- Cascade control
- Controller parameter setting and optimisation
- PLC programming for process sequences
- Fault finding on six simulated faults
Scope of supply
This listing covers the industrial process control rig with controller, PLC and visualisation software. Accessories, spares and quantities are confirmed on the quotation. The PC is an accessory confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, packing and lead time for the Industrial Process Control Rig are stated on the quotation once the quantity and delivery destination are known. JaincoLab supplies single laboratory orders, bulk requirements for engineering colleges and polytechnics, and tender lots.
Frequently asked questions
Which loops can be studied?
Level, flow and temperature control, plus cascade control.
Can faults be simulated?
Yes, six different faults can be simulated and found.
Is a PLC included?
Yes, a programmable logic controller is part of the rig.
What should a quotation request include?
Send SKU JA-AM-6477, the quantity and the delivery destination.
