Gas Flow Classification
Product Code : JA-AM-6480

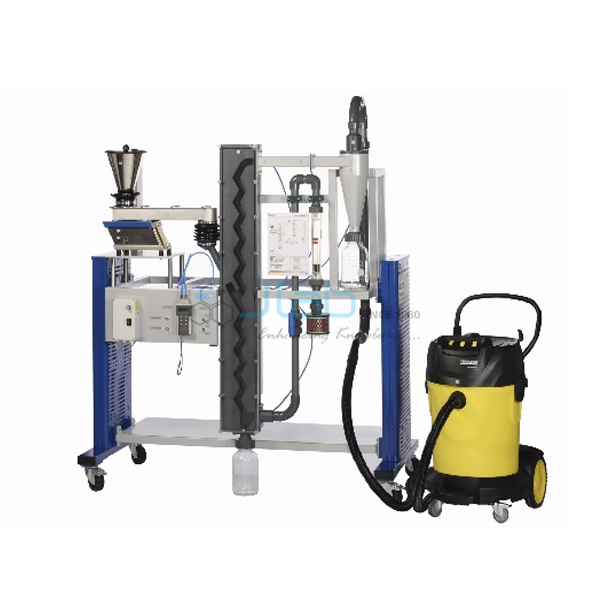

The Gas Flow Classification unit (SKU JA-AM-6480) is a zigzag air sifter for classifying mixtures of solid particles by size and density. Material from a feed hopper is delivered by a vibrating trough into the zigzag duct at mid-height while air flows upward; at each bend particles cross the air stream, lighter ones are carried up and heavier ones fall, so each bend acts as a sifting stage. This zigzag sifter is supplied by JaincoLab for mechanical process engineering and chemical engineering laboratories.
Specifications
The unit comprises a feed hopper, a vibrating trough feeder, a vertical zigzag sifting duct and an upward air supply; duct dimensions, air flow range and fan rating are not listed in the product data and are confirmed on the quotation.
| Product | Gas Flow Classification |
| SKU | JA-AM-6480 |
| Type | Zigzag air sifter (gas flow classifier) |
| Feeding | Feed hopper and vibrating trough into the duct at mid-height |
| Classifying duct | Vertical zigzag duct with upward air stream |
| Principle | Each bend is one sifting stage; vortex wake gives cross-flow sifting |
Experiments with the zigzag air sifter
Students classify a particle mixture at different air velocities, weigh the fine and coarse fractions and plot the separation (grade efficiency) curve.
- Air classification of solid mixtures
- Effect of air velocity on the cut size
- Grade efficiency curves
- Particle size and density effects in separation
- Mechanical process engineering practicals
Scope of supply
This listing covers the zigzag sifter unit with hopper, vibrating feeder and sifting duct as described. Accessories, spares and quantities are confirmed on the quotation. Test materials and sieves for analysis are confirmed on the quotation.
Packing, MOQ and lead time
MOQ, lead time and packing for the Gas Flow Classification are confirmed on each quotation for the quantity and delivery destination. Single units for one laboratory and complete sets for institutions or projects are both supplied.
JaincoLab manufactures and exports laboratory equipment for Ministry of Education programmes, World Bank-funded tenders and United Nations projects, and has executed these supplies successfully in many countries. Contractors bidding for such tenders can contact JaincoLab for specifications, quotations and turnkey tender supply.
Frequently asked questions
How does a zigzag sifter work?
Particles cross an upward air stream at every bend; light particles rise and heavy ones fall, each bend acting as a sifting stage.
How is the material fed?
From a feed hopper by a vibrating trough into the middle of the duct.
Are air flow figures listed?
Air flow range and fan rating are confirmed on the quotation.
What should a quotation request include?
Send SKU JA-AM-6480, the quantity and the delivery destination.
