Thyristor Alarms
Product Code : JA-PET-1422

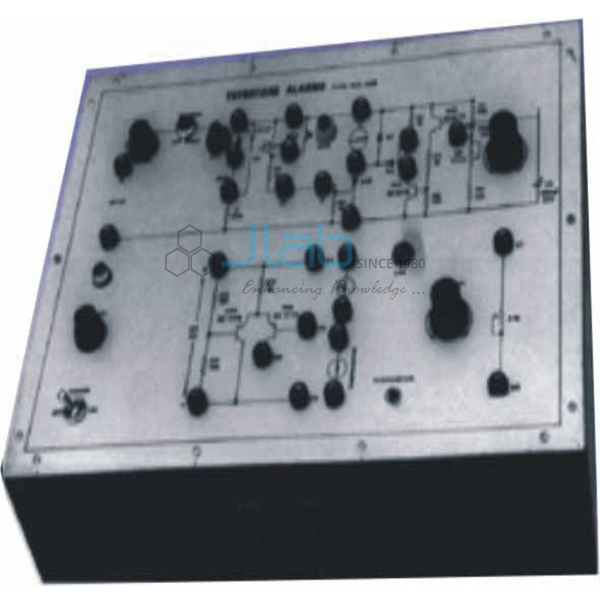

The thyristor alarms trainer is a power electronics board for building SCR-based alarm circuits. It demonstrates make-to-operate and break-to-operate alarms, a tamper-proof burglar alarm, an alarm with delayed self-latching, and alarms triggered by water level, by a light beam through an LDR and by temperature through a thermistor. A 12 V audio alarm sounds when the SCR fires (SKU JA-PET-1422).
Specifications
Built-in parts and ratings listed:
| Product | Thyristor Alarms |
| SKU | JA-PET-1422 |
| DC supply | 12 V DC, internally connected, fuse protected; ON/OFF switch for standby and reset |
| Alarm | Internal 12 V audio alarm |
| Switches | Push buttons for push-to-make and push-to-break demonstrations |
| Transistors | One PNP and two NPN for alarm control; two PNP in differential amplifier mode for sensing |
| Sensors | LDR (light) and thermistor (temperature) |
| Controls | Time delay potentiometer; differential amplifier balance potentiometer |
| Switching device | SCR |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm stackable, 0.5 m |
| Weight | 3 kg approx. |
| Dimensions | W 340 x H 110 x D 210 mm |
Demonstrations on the alarms trainer
The listed studies are:
- Make-to-operate and break-to-operate alarms
- Tamper-proof burglar alarm
- Alarm with delayed self-latching
- Water level alarm
- Light beam alarm using an LDR
- Temperature alarm using a thermistor
Scope of supply and ordering
The listing covers the alarms trainer with its sensors, patch cords and operating instructions, supplied by JaincoLab. The number of units, the packing and the dispatch time are confirmed on the quotation.
Frequently asked questions
Which sensors are fitted to the alarm trainer?
An LDR for light and a thermistor for temperature.
What sounds the alarm?
An internal 12 V audio alarm operated through the SCR.
Which alarm types can be demonstrated?
Make-to-operate, break-to-operate, tamper-proof burglar, delayed self-latching, water level, light beam and temperature alarms.
