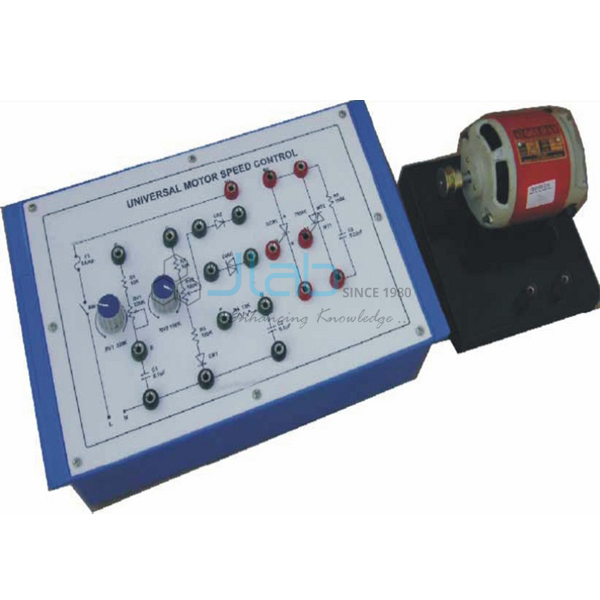

Universal Motor Speed Control
Product Code : JA-PET-1425
The universal motor speed control trainer demonstrates SCR and TRIAC speed control of a series-wound universal motor, a type that runs on both AC and DC supply. The board carries a universal motor of 1/12 HP or less and can control universal motors up to 1/4 HP, covering half-wave control with and without feedback and full-wave TRIAC control (SKU JA-PET-1425).
Specifications
Listed parts and ratings of the speed control board:
| Product | Universal Motor Speed Control |
| SKU | JA-PET-1425 |
| Control devices | SCR and TRIAC |
| Firing components | Two potentiometers; two capacitors to control the thyristor firing angle; DIAC and two diodes |
| Motor fitted | Universal motor, 1/12 HP or less |
| Control capacity | Universal motors up to 1/4 HP |
| Snubber | Across the TRIAC, to improve dv/dt behaviour and reduce RFI |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm stackable spring-loaded plugs, 0.5 m |
| Weight | 3 kg approx. |
| Dimensions | W 340 x H 110 x D 210 mm |
| Other apparatus required | Digital multimeter (3¾ digit); dual trace CRO 20 MHz (unearthed) |
Universal motor speed control experiments
The operating instructions cover four controller circuits:
- Half-wave controller without feedback
- Half-wave controller with feedback
- Half-wave controller for high torque at low speed (skip-cycle operation)
- Full-wave TRIAC controller, showing hysteresis effects and their improvement by gate slaving
Scope of supply and ordering
The listing covers the speed control board with its fitted universal motor, patch cords and operating instructions, supplied by JaincoLab. Order quantity, packing and delivery time are set out on each quotation.
Frequently asked questions
Is a motor included on the board?
Yes. A universal motor of 1/12 HP or less capacity is built in, and the board can control universal motors up to 1/4 HP.
Which controller types can be studied?
Half-wave control with and without feedback, a skip-cycling half-wave version for high torque at low speed, and full-wave TRIAC control.
Why is a snubber fitted across the TRIAC?
It improves the dv/dt behaviour of the device and helps reduce radio-frequency interference.
