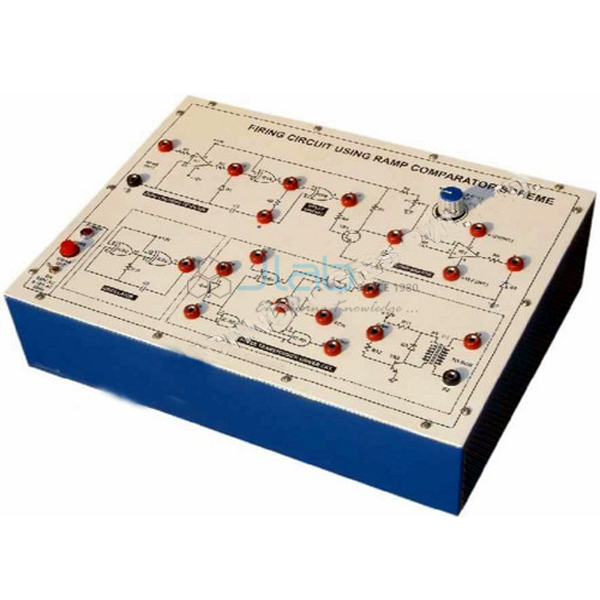

Firing Circuit Using Ramp Comparator Scheme
Product Code : JA-PET-1434
The ramp comparator firing circuit trainer shows how firing pulses for a single phase converter are produced with the ramp comparator scheme. The board carries two op-amps, logic gate ICs, two NPN transistors, a reference-voltage potentiometer and a 1:1 pulse transformer, powered by 6 V AC and ±12 V DC regulated supplies (SKU JA-PET-1434).
Specifications
The firing circuit board has these listed parts and ratings:
| Product | Firing Circuit Using Ramp Comparator Scheme |
| SKU | JA-PET-1434 |
| AC supply | 6 V AC at 100 mA |
| DC supply | ±12 V DC at 100 mA, fixed regulated |
| ICs | Two op-amps; quad Ex-OR, triple 3-input AND, hex inverter and quad 2-input AND gate ICs |
| Transistors | Two NPN |
| Reference control | Potentiometer for reference voltage adjustment |
| Pulse transformer | 1:1 |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm stackable spring-loaded plugs, 0.5 m |
| Weight | 3 kg approx. |
| Dimensions | W 340 x H 110 x D 210 mm |
| Other apparatus required | Dual trace CRO 20 MHz (unearthed) |
| Optional load unit | 50 W isolation transformer, 40 W lamp and 400 V, 4 A SCR, with mains ON/OFF switch, fuse and jewel light |
Scope of supply and ordering
The listing covers the ramp comparator firing circuit board with patch cords and operating instructions, supplied by JaincoLab; the optional load unit (50 W isolation transformer, 40 W lamp, 400 V 4 A SCR) can be quoted with it. Packing, lead time and the quantity per order are agreed on the quotation.
Frequently asked questions
What does the ramp comparator board demonstrate?
The firing circuit for a single-phase converter based on the ramp comparator scheme, which is its listed experiment.
Is a load included?
Not in the basic board. An optional load unit with a 50 W isolation transformer, a 40 W lamp and a 400 V, 4 A SCR is listed for the experiment.
How is the firing point adjusted?
With the potentiometer for reference voltage adjustment.
