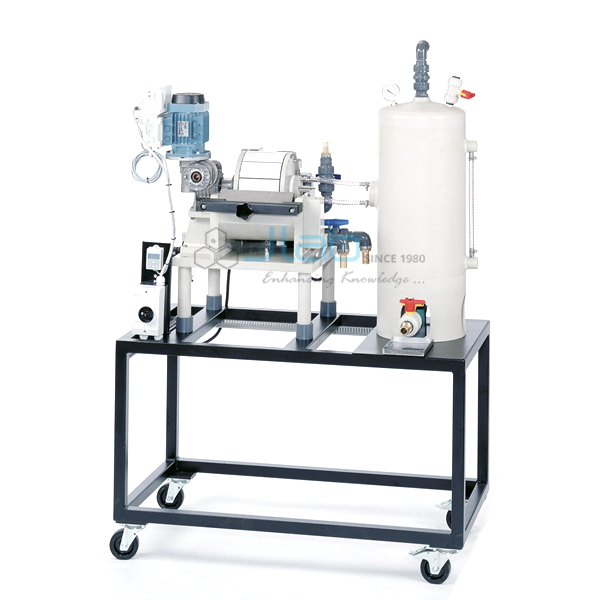

Drum Cell Filter
Product Code : JA-AM-6488
The Drum Cell Filter (SKU JA-AM-6488) is a rotary vacuum drum filter for continuous cake filtration of suspensions. A perforated drum covered with filter cloth rotates partly immersed in a stirred suspension tank; vacuum inside the drum draws off the filtrate and dries the cake, which is removed continuously by an adjustable scraper or compressed air. Drum speed is infinitely variable. It is supplied by JaincoLab for chemical and mechanical process engineering laboratories.
Specifications
The drum has about 0.1 m² filter area and turns at about 0.1-3 rpm on a motor of about 300 W; the stirrer runs at about 15 rpm on about 120 W; the filtrate vacuum tank and cake collector each hold about 30 litres, and the suspension volume is listed as about 3 litres.
| Product | Drum Cell Filter |
| SKU | JA-AM-6488 |
| Drum | Perforated, with filter cloth; filter area approx. 0.1 m²; speed approx. 0.1-3 rpm, infinitely variable; motor approx. 300 W |
| Cake removal | Adjustable scraper or compressed air |
| Stirrer | Approx. 15 rpm; motor approx. 120 W |
| Suspension tank | With stirrer and overflow; suspension approx. 3 litres (as listed) |
| Filtrate vacuum tank | Plastic, approx. 30 litres |
| Cake collector | Plastic, approx. 30 litres |
Experiments with the drum cell filter
Students run continuous filtration at different drum speeds and vacuum levels, weigh cake and filtrate and relate throughput and cake moisture to operating conditions.
- Continuous rotary vacuum filtration
- Effect of drum speed on cake thickness and throughput
- Effect of vacuum on cake dryness
- Scraper and compressed-air cake discharge
- Mechanical operations practicals
Scope of supply
This listing covers the drum cell filter with drum, filter cloth, drive, stirred suspension tank, vacuum tank, cake collector and scraper. Accessories, spares and quantities are confirmed on the quotation. Vacuum source, compressed air and spare cloths are confirmed on the quotation.
Packing, MOQ and lead time
MOQ, lead time and packing for the Drum Cell Filter are confirmed on each quotation for the quantity and delivery destination. Single units for one laboratory and complete sets for institutions or projects are both supplied.
JaincoLab manufactures and exports laboratory equipment for Ministry of Education programmes, World Bank-funded tenders and United Nations projects, and has executed these supplies successfully in many countries. Contractors bidding for such tenders can contact JaincoLab for specifications, quotations and turnkey tender supply.
Frequently asked questions
What is the filter area?
Approximately 0.1 m².
How is the cake removed?
Continuously, by an adjustable scraper or by compressed air.
What is the drum speed range?
About 0.1 to 3 rpm, infinitely variable.
How do I request a price?
Share the SKU JA-AM-6488, the quantity and the delivery destination through the contact page or by email to [email protected].
