Hydrocyclone
Product Code : JA-AM-6485

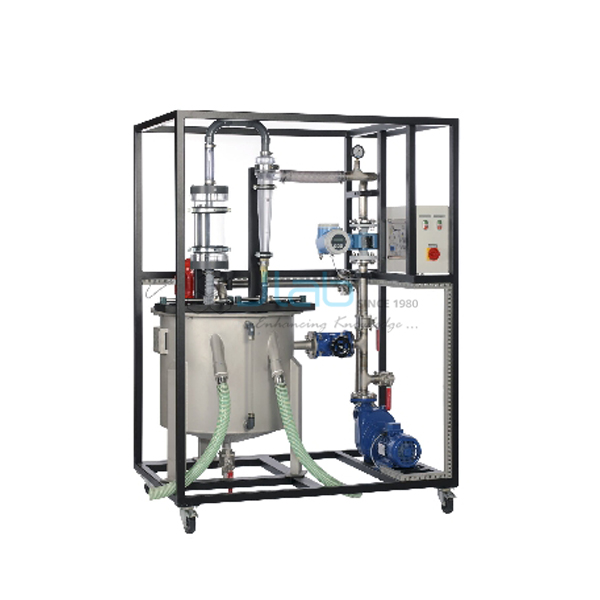

The Hydrocyclone unit (SKU JA-AM-6485) is a test unit for separating solids from liquids in a hydrocyclone with a tangential inlet. A suspension prepared in a 200 litre stainless steel stirred tank is pumped by a centrifugal pump, with flow set by a bypass valve and measured by an electromagnetic flow meter, into a 114 mm cyclone. Sampling points on the top and bottom flows give flow rates and solid concentrations, and a manometer shows pressure loss. It is supplied by JaincoLab for chemical and mechanical process engineering laboratories.
Specifications
The cyclone is 710 mm high and 114 mm in diameter with a 40 mm immersion tube; the pump delivers up to 400 l/min at 30 m head; pressure is measured over 0-4 bar and flow over 0-200 l/min; the top flow tank is 5 litres in PMMA.
| Product | Hydrocyclone |
| SKU | JA-AM-6485 |
| Cyclone | Height 710 mm; diameter 114 mm; immersion tube 40 mm; tangential inlet |
| Stirred tank | 200 litres, stainless steel |
| Top flow tank | 5 litres, PMMA |
| Pump | Centrifugal; max. 400 l/min; max. head 30 m; bypass flow valve |
| Flow measurement | Electromagnetic flow meter at inlet, 0-200 l/min |
| Pressure | Manometer for cyclone pressure loss, 0-4 bar |
| Sampling | Top flow and bottom flow sampling points |
Experiments with the hydrocyclone unit
Students run suspensions at different flow rates, sample the overflow and underflow and calculate the split, pressure loss and separation efficiency of the cyclone.
- Solid-liquid separation in a hydrocyclone
- Pressure loss versus flow rate
- Separation efficiency and cut size
- Flow split between overflow and underflow
- Mechanical process engineering practicals
Scope of supply
This listing covers the hydrocyclone unit with cyclone, stirred tank, top flow tank, pump, flow meter, manometer and sampling points. Accessories, spares and quantities are confirmed on the quotation. Power supply and test solids are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, packing and lead time for the Hydrocyclone are stated on the quotation once the quantity and delivery destination are known. JaincoLab supplies single laboratory orders, bulk requirements for engineering colleges and polytechnics, and tender lots.
Frequently asked questions
What are the cyclone dimensions?
710 mm high, 114 mm diameter, with a 40 mm immersion tube.
How are flow and pressure measured?
Flow by an electromagnetic flow meter (0-200 l/min) and pressure loss by manometer (0-4 bar).
What is the stirred tank capacity?
200 litres, in stainless steel.
How do I request a price?
Share the SKU JA-AM-6485, the quantity and the delivery destination through the contact page or by email to [email protected].
