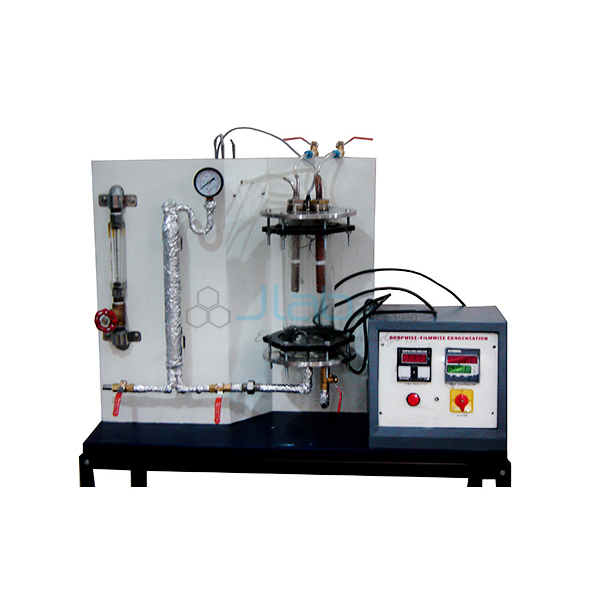

Dropwise and Filmwise Condensation Apparatus
Product Code : JA-HTLE-7379
The Dropwise and Filmwise Condensation Apparatus (SKU JA-HTLE-7379) shows the two ways in which steam condenses on a cooled surface and measures the heat transfer coefficient of each. Two water-cooled copper tubes, one with a natural finish and one nickel polished, sit in a compact glass cylinder so the drops and the film can be seen. This condensation heat transfer apparatus has its own 8 litre steam generator with a 1.5 kW heater and digital temperature control.
Specifications
The condensation apparatus is specified by an 8 litre stainless steel steam generator with a 1.5 kW heater, two copper tubes of about 19 mm diameter and 170 mm length, RTD PT-100 sensors, a Bourdon pressure gauge and a rotameter, as set out below.
| Product | Dropwise and Filmwise Condensation Apparatus |
| SKU | JA-HTLE-7379 |
| Steam generator | About 8 litres, stainless steel, 1.5 kW heater; ceramic wool insulation, aluminium foil cladding; water level indicator |
| Temperature controller | Digital, 0 - 199.9 °C (steam generator) |
| Condensation tubes | 2 copper tubes, one natural finish, one nickel polished; about 19 mm dia. x 170 mm |
| Enclosure | Compact glass cylinder on a vertical frame |
| Temperature sensors | RTD PT-100 |
| Temperature indicator | Digital, 0 - 199.9 °C, multi-channel switch |
| Pressure gauge | Bourdon type |
| Water flow measurement | Rotameter |
| Control valves | One each for steam, cooling water and drain; two valves for water flow in each tube |
| Condensate measurement | Measuring cylinder and stopwatch |
Experiments with the condensation apparatus
The apparatus is used to compare dropwise condensation, which forms on the polished tube, with filmwise condensation on the plain tube, and to find the heat transfer coefficient for each from the cooling water and condensate readings.
- Visualising dropwise and filmwise condensation
- Heat transfer coefficient for dropwise condensation
- Heat transfer coefficient for filmwise condensation
- Phase-change heat transfer practicals in mechanical and chemical engineering
Scope of supply and ordering
The listing covers the Dropwise and Filmwise Condensation Apparatus with steam generator, glass cylinder, both copper tubes, sensors, indicator, controller, pressure gauge, rotameter and valves. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. Single set-ups and complete heat transfer laboratories for engineering colleges, polytechnics and ITIs, including tender orders, are supplied.
Frequently asked questions
How is the difference between the tubes created?
One copper tube has a natural finish and the other is nickel polished, so filmwise and dropwise condensation can be compared.
What size is the steam generator?
About 8 litres, stainless steel, with a 1.5 kW heater and a digital controller up to 199.9 °C.
How is condensate measured?
With a measuring cylinder and a stopwatch.
