Heat Transfer In Forced Convection
Product Code : JA-HTLE-7375

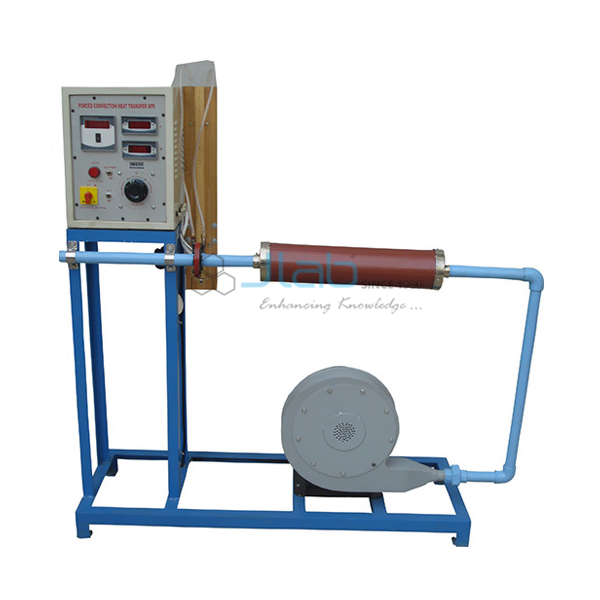

The Heat Transfer In Forced Convection apparatus (SKU JA-HTLE-7375) measures how moving air removes heat from the inside of a heated pipe. A blower drives air through the test pipe, whose flow is measured with an orifice, while a nichrome wire heater around the pipe gives a constant heat flux. This forced convection apparatus has four temperature sensors, on the pipe surface and in the air stream at inlet and outlet, and suits heat transfer labs.
Specifications
The forced convection apparatus is described by its blower, test pipe on the blower delivery, orifice for air flow, four temperature sensors and a nichrome heater fed through a variac with digital voltmeter and ammeter. Pipe size, heater rating and blower capacity are confirmed on the quotation.
| Product | Heat Transfer In Forced Convection |
| SKU | JA-HTLE-7375 |
| Air supply | Blower unit fitted with the test pipe |
| Flow measurement | Orifice on the delivery side |
| Heater | Nichrome wire around the test section; constant heat flux |
| Temperature sensors | 4 (on the test section, and at air inlet and outlet) |
| Heat input control | Variac with digital voltmeter and digital ammeter |
| Pipe size, heater rating, blower capacity | Confirmed on the quotation |
Experiments with the forced convection apparatus
The apparatus is used to find the heat transfer coefficient for air flowing inside a heated pipe and to see how it changes with air flow rate and heat input.
- Average surface heat transfer coefficient for a pipe in forced convection
- Comparison of heat transfer coefficient at different air flow and heat flow rates
- Surface temperature distribution along the pipe
- Comparison of measured values with forced-convection correlations
Scope of supply and ordering
The listing covers the Heat Transfer In Forced Convection apparatus with blower, test pipe, orifice, heater, sensors and control panel. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. Single set-ups and complete heat transfer laboratories for engineering colleges, polytechnics and ITIs, including tender orders, are supplied.
Frequently asked questions
How is the air flow measured?
With an orifice on the delivery side of the blower.
How is the pipe heated?
By a nichrome wire heater around the test section, giving a constant heat flux set through a variac.
How many temperature points are there?
Four, on the test section and in the air stream at inlet and outlet.
