Model of Babcock and Wilcox Boiler
Product Code : JA-AM-6097

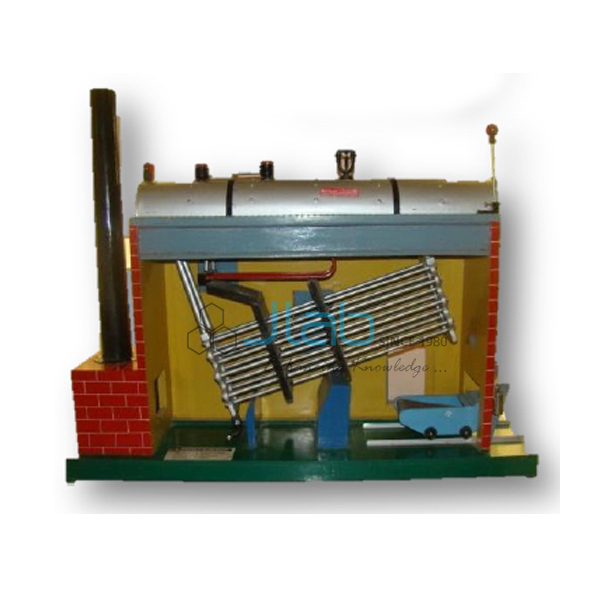

The Model of Babcock and Wilcox Boiler (SKU JA-AM-6097) shows the Babcock and Wilcox water tube boiler. The Babcock and Wilcox boiler model has a shell 15 cm in diameter and 75 cm long, fitted with a superheater and with inclined water tubes over the furnace connected by headers, and the seating and brickwork are shown in wood. It is about 1 m long and is made by JaincoLab for thermal engineering teaching.
Specifications
The Model of Babcock and Wilcox Boiler has a shell 15 cm in diameter and 75 cm long with a superheater and inclined header-connected water tubes, and measures about 100 cm long, 28 cm wide and 77 cm high.
| Product | Model of Babcock and Wilcox Boiler |
| SKU | JA-AM-6097 |
| Boiler type | Water tube (Babcock and Wilcox) |
| Shell | 15 cm diameter x 75 cm long |
| Tubes | Inclined water tubes over the furnace, connected with headers |
| Superheater | Fitted |
| Setting | Seating and brickwork shown in wood |
| Mountings | Stop valve; safety valve; water gauge; steam gauge; manhole; mud hole; regulating draught door; damper with counterweight; chimney |
| Overall size | About 100 x 28 x 77 cm (L x W x H) |
Applications of the Babcock and Wilcox boiler model
The Babcock and Wilcox boiler model is used to explain how water circulates through the inclined tubes and headers above the furnace and how the superheater dries the steam, in contrast to fire tube boilers.
- Diploma and degree thermal engineering lessons on water tube boilers
- Power plant engineering teaching on boilers and superheaters
- Comparing water tube and fire tube boiler designs
- Identification of boiler mountings in practical examinations
Scope of supply and ordering
The listing covers one Model of Babcock and Wilcox Boiler with the mountings listed above. It is a teaching model only. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are set on the quotation for each Model of Babcock and Wilcox Boiler order, based on quantity and destination. Bulk orders for polytechnics, engineering colleges and ITIs and tender quantities are supplied, including export consignments to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What type of boiler is modelled?
A Babcock and Wilcox water tube boiler with a superheater.
What is the size of the model?
About 100 cm long, 28 cm wide and 77 cm high; the shell is 15 cm in diameter and 75 cm long.
Which mountings are fitted?
Stop valve, safety valve, water and steam gauges, manhole, mud hole, draught door, damper with counterweight and chimney.
