Cross Flow Heat Exchanger
Product Code : JA-HTLE-9223

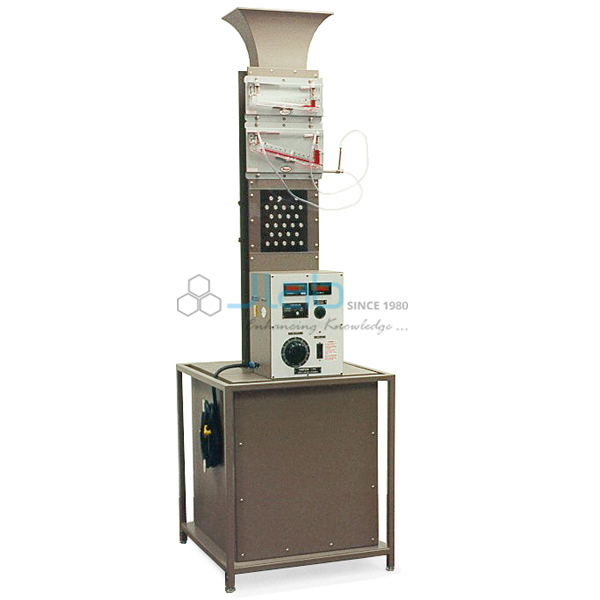

The Cross Flow Heat Exchanger (SKU JA-HTLE-9223), supplied by JaincoLab, is a small-scale unit for teaching heat transfer between hot water in tubes and air blown across them. An axial fan drives the air, an air velocity sensor gives the air mass flow, and K-type thermocouples measure the water and air temperatures at inlet and outlet. This cross flow heat exchanger sits on a PVC baseplate that installs on a heat exchanger service unit without tools.
Specifications
The cross flow heat exchanger is described by its axial fan, air velocity sensor, K-type thermocouples for inlet and outlet water and air, removable probes and fan, and a PVC baseplate. Tube and fin sizes are not in the listing and are confirmed on the quotation; the service unit is quoted separately.
| Product | Cross Flow Heat Exchanger |
| SKU | JA-HTLE-9223 |
| Type | Small-scale cross-flow, water to air |
| Air supply | Axial fan (removable for cleaning) |
| Air flow measurement | Air velocity sensor |
| Temperature sensors | K-type thermocouples, water and air inlet and outlet |
| Mounting | PVC baseplate; tool-free fitting on the heat exchanger service unit plinth |
| Documentation | Instruction manual |
| Tube and fin sizes | Confirmed on the quotation |
Experiments with the cross flow heat exchanger
The unit is used to analyse cross-flow heat exchange by varying the water and air conditions and recording the four terminal temperatures and the air velocity.
- Energy balance between the water and air streams
- Effect of air velocity on heat transfer
- Effect of water temperature and flow on performance
- Comparison of cross flow with parallel and counter flow
Scope of supply and ordering
The listing covers the Cross Flow Heat Exchanger with its instruction manual. The heat exchanger service unit that supplies the hot water and readings is not part of this item and is quoted separately. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. Single set-ups and complete heat transfer laboratories for engineering colleges, polytechnics and ITIs, including tender orders, are supplied.
Frequently asked questions
Does it need a service unit?
Yes. It installs on the plinth of a heat exchanger service unit, which is quoted separately.
How is the air flow measured?
With an air velocity sensor, from which the air mass flow rate is derived.
Can it be cleaned easily?
Yes. The probes and the axial fan can be removed for cleaning.
