CNC Micro Mill
Product Code : JA-CTM-9071

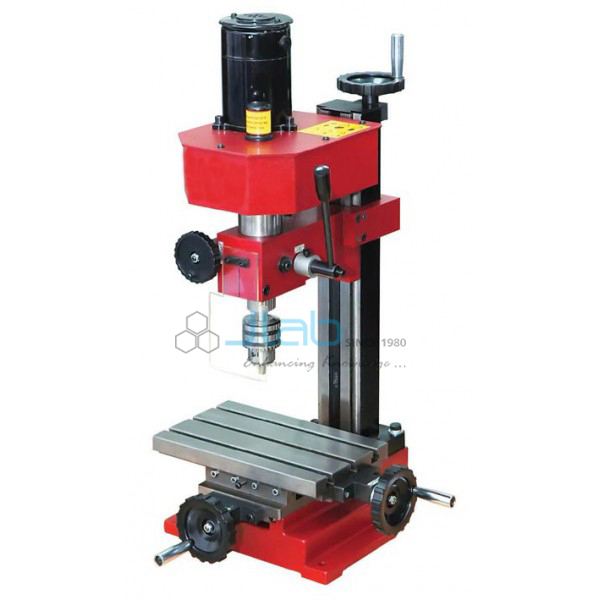

The CNC Micro Mill (SKU JA-CTM-9071) is a desktop CNC milling machine that produces anything from simple to complex geometric forms in wood, plastic, aluminium or steel. It combines ground steel slideways with adjustable brass gibs, a hard anodised aluminium table and stepper-driven lead screws, and it reads standard G-code. Engineering colleges, polytechnics and design studios use it to teach CNC milling on a bench. It is supplied by JaincoLab as a complete system with drive electronics and control software.
Specifications
The mill gives 300 mm X, 146 mm Y and 153 mm Z travel, 0.003 mm stepping resolution and 0.01 mm mechanical repeatability, with a 1/4 HP spindle running from 1100 to 11000 rpm.
| Product | CNC Micro Mill |
| SKU | JA-CTM-9071 |
| Travel | X 300 mm, Y 146 mm, Z 153 mm |
| Stepping resolution | 0.003 mm |
| Mechanical repeatability | 0.01 mm |
| Spindle | 1/4 HP motor, 1100 to 11000 rpm, pulley set with drive belt |
| Rapid travel | 30 in/min |
| Lead screws | 1/2 in (12.7 mm), 20 pitch, Cr-Mo |
| Stepping motors | 200 oz-in |
| Slideways | Ground steel with adjustable brass gib; tapered brass gib on X axis |
| Z axis | Box way assembly with ground steel plate and tapered brass gib |
| Table | Hard anodised aluminium |
| Collet | One of 3 mm, 4 mm or 6 mm, with collet closer |
| Electronics | Electronic chopper driver unit, input/output port |
| Software | PC control software interface (listed as Mach 3), standard G-code import |
| Options | 4th axis amplifier and port |
Applications of the desktop CNC micro mill
The micro mill is sized for a classroom bench, so each group of students can run real G-code programs and cut parts without a full-size machine shop.
- CNC milling practicals in mechanical and production engineering courses
- G-code programming and toolpath verification exercises
- Machining small parts in wood, plastic, aluminium and steel
- Prototype and project work in design and innovation labs
- Demonstrating stepper-motor drives and CNC control electronics
Scope of supply and ordering
The listing covers the micro mill with 1/4 HP spindle motor, pulley set and drive belt, one collet (3, 4 or 6 mm) with collet closer, electronic chopper driver unit, input/output port, stepping motors, control software interface, printer cable and power cable. The 4th axis amplifier and port are optional. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the collet size, optional 4th axis and number of units and the delivery destination. Single mills and sets for a CNC teaching lab or tender are supplied.
Frequently asked questions
What materials can it cut?
It machines wood, plastic, aluminium and steel, from simple to complex geometric forms.
How much travel does it have?
X 300 mm, Y 146 mm and Z 153 mm.
Which collet is included?
One collet of 3 mm, 4 mm or 6 mm with a collet closer; state the size you need.
Is a 4th axis available?
A 4th axis amplifier and port are available as an option.
