8 Directional Vertical Milling
Product Code : JA-CTM-9072

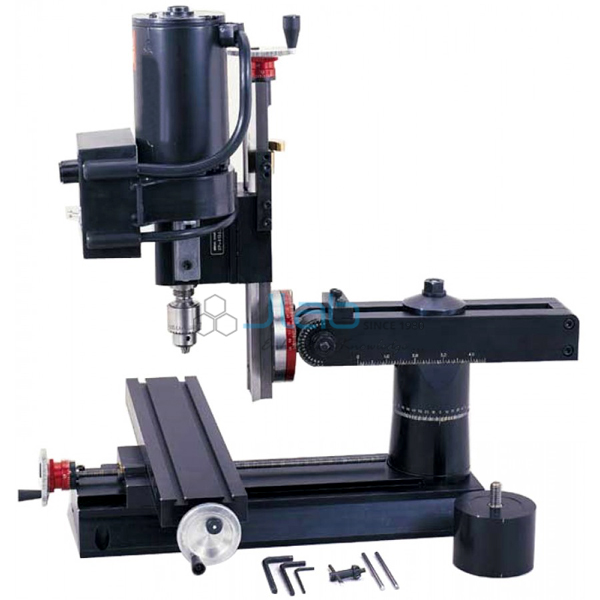

The 8 Directional Vertical Milling (SKU JA-CTM-9072) is a compact bench vertical milling machine whose head can be set in eight directions, so angled cuts and holes can be made without re-clamping the work. It has a 70 x 330 mm table with two T-slots, 229 mm X, 178 mm Y and 137 mm Z travel and a 90 V DC motor with electronic speed control giving 70 to 2800 rpm. Workshops, design labs and model makers use this bench vertical milling machine for small precision parts. It is supplied by JaincoLab.
Specifications
The mill gives 229 mm maximum table-to-spindle clearance, 229/178/137 mm X/Y/Z travel, a 10 mm hole through the spindle and continuously variable speed from 70 to 2800 rpm.
| Product | 8 Directional Vertical Milling |
| SKU | JA-CTM-9072 |
| Maximum clearance, table to spindle | 229 mm |
| Throat | Adjustable |
| Travel | X 229 mm, Y 178 mm, Z 137 mm |
| Hole through spindle | 10 mm |
| Spindle nose thread | 3/4-16 TPI |
| Table size | 70 x 330 mm |
| Hold down | 2 T-slots |
| Motor | 90 V DC with electronic speed control; accepts 100-240 V AC, 50 or 60 Hz |
| Spindle speed | 70 to 2800 rpm, continuously variable |
Applications of the 8 directional vertical milling machine
Because the head sets in eight directions, the machine handles angled milling and drilling on small parts that would otherwise need a tilting vice or rotary table.
- Milling and drilling practice on small parts in engineering workshops
- Angled holes and faces using the multi-direction head
- Model making and prototype work in design labs
- Small precision components in brass, aluminium and plastics
Scope of supply and ordering
The listing covers the 8 directional vertical milling machine with its table, adjustable throat and DC motor with electronic speed control. Vices, cutters, collets and a stand are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the tooling package and number of machines and the delivery destination. Single machines and workshop sets for colleges and tenders are supplied.
Frequently asked questions
What supply voltage does it need?
The electronic speed control accepts any input from 100 to 240 V AC at 50 or 60 Hz.
What is the speed range?
70 to 2800 rpm, continuously variable.
How large is the table?
70 x 330 mm with two T-slots.
Related products
Browse the full CNC trainer machine range for lathes, mills, controllers and automation trainers from JaincoLab.
Request a quote
To order the 8 Directional Vertical Milling, send the quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-CTM-9072. For tender or project supply, see our tenders page.
