Flexible Manufacturing System
Product Code : JA-CTM-9058

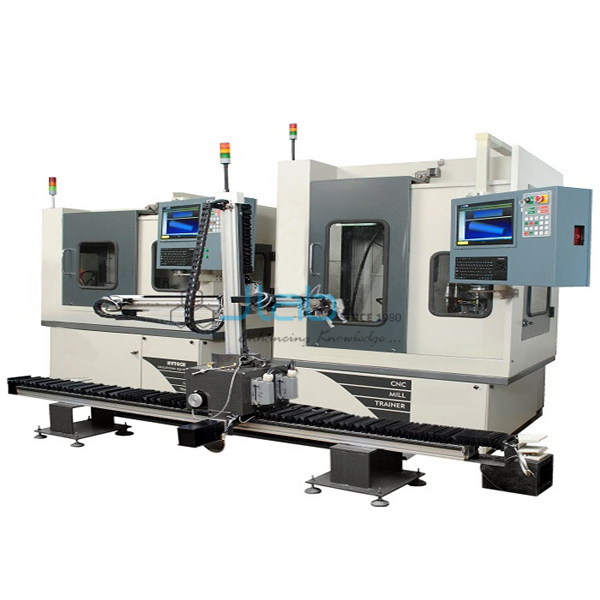

The Flexible Manufacturing System (SKU JA-CTM-9058) is a flexible manufacturing system trainer built around a PLC-controlled CNC turning unit with Cut Viewer software. The turning unit has servo axis drives, a 125 mm hydraulic chuck, a 45 degree slant bed and a 2 HP AC servo spindle running from 100 to 3000 rpm, with an 8-station automatic turret. Engineering colleges and polytechnics use FMS equipment to teach automated, flexible production. JaincoLab manufactures it for manufacturing and automation labs.
Specifications
The listed specification covers the CNC turning unit: 45 degree slant bed, 125 mm hydraulic chuck, 80 mm X and 280 mm Z travel, 0.001 mm resolution, 0.005 mm positional accuracy and 0.010 mm repeatability.
| Product | Flexible Manufacturing System |
| SKU | JA-CTM-9058 |
| Controller software | Cut Viewer |
| Control system | PLC-based |
| Axis motor and drive | Servo motors with servo drives |
| Chuck | 125 mm, hydraulic |
| Bed type | 45 degree slant |
| Feed rate | 0 to 10,000 mm/min |
| Centre height | 100 mm |
| Resolution X and Z | 0.001 mm |
| Positional accuracy | 0.005 mm |
| Repeatability | 0.010 mm |
| Spindle | 2 HP AC servo, 100 to 3000 rpm with VFD |
| Axis travel X / Z | 80 mm / 280 mm |
| Tool changer | Automatic, 8-station turret |
| Accessories | Automatic coolant, automatic lubrication |
Applications of the flexible manufacturing system trainer
The system gives students a working CNC turning station inside an automated cell, so they can study how flexible manufacturing links machines, control and part flow.
- Flexible manufacturing and CIM laboratory practicals in engineering colleges
- PLC-based control of a CNC turning station
- Program simulation with Cut Viewer before machining
- Automated turning with an 8-station tool turret
- Final-year projects on production automation
Scope of supply and ordering
The listing covers the FMS training unit with its PLC-controlled CNC turning machine, servo drives, hydraulic chuck, automatic turret, coolant and lubrication. Any additional cell stations, robots or conveyors are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the system configuration and number of units and the delivery destination. Single systems and complete lab set-ups for colleges and tenders are supplied.
Frequently asked questions
What is the core machine of the system?
A PLC-controlled CNC turning unit with servo drives, 125 mm hydraulic chuck and 45 degree slant bed.
What software is used?
Cut Viewer is listed as the controller software.
How many tools does the turret hold?
Eight, on an automatic turret.
Can robots or conveyors be added?
Additional cell equipment is quoted on request; list the stations you need.
