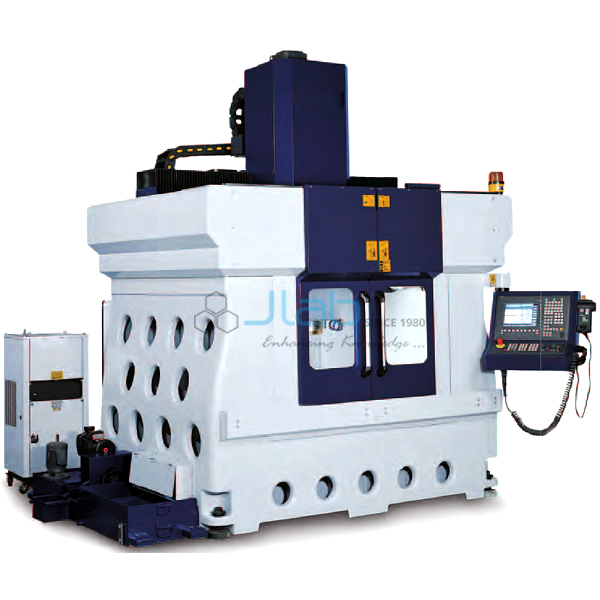

CNC Milling Machine
Product Code : JA-CTM-9073
The CNC Milling Machine (SKU JA-CTM-9073) is a high-speed CNC milling machine intended for mould and die work, combining a built-in 24,000 rpm spindle with 900 mm X, 600 mm Y and 500 mm Z travel. Cutting feed runs from 1 to 20,000 mm/min and a 20-tool automatic tool changer handles multi-tool programs for milling, cutting and drilling. Toolrooms, advanced training centres and engineering colleges use it for high-speed machining. It is supplied by JaincoLab.
Specifications
The machine offers 900/600/500 mm X/Y/Z travel, a built-in spindle to 24,000 rpm, cutting feed rates of 1 to 20,000 mm/min and a 20-tool automatic tool changer.
| Product | CNC Milling Machine |
| SKU | JA-CTM-9073 |
| Travel | X 900 mm, Y 600 mm, Z 500 mm |
| Spindle | Built-in, 24,000 rpm |
| Cutting feed rate | 1 to 20,000 mm/min |
| Automatic tool changer | 20 tools |
| Machine functions | CNC milling, cutting and drilling |
Applications of the high-speed CNC milling machine
High spindle speed and long travels suit mould and die machining, where fine finishing passes over large surfaces are needed.
- Mould and die machining in toolrooms
- High-speed finishing of complex surfaces
- Multi-tool milling, cutting and drilling programs with the 20-tool ATC
- Advanced CNC machining training in engineering colleges and training centres
Scope of supply and ordering
The listing covers the CNC milling machine with built-in spindle and 20-tool automatic tool changer. The CNC control, table size, spindle power and tooling are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the machine configuration and number of machines and the delivery destination. Single machines for toolrooms and training centres, and tender orders, are supplied.
Frequently asked questions
What are the axis travels?
X 900 mm, Y 600 mm and Z 500 mm.
How fast is the spindle?
The built-in spindle runs up to 24,000 rpm.
How many tools does the changer hold?
Twenty.
Related products
Browse the full CNC trainer machine range for lathes, mills, controllers and automation trainers from JaincoLab.
Request a quote
To order the CNC Milling Machine, send the quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-CTM-9073. Tender and project enquiries can be sent through the tenders page.
