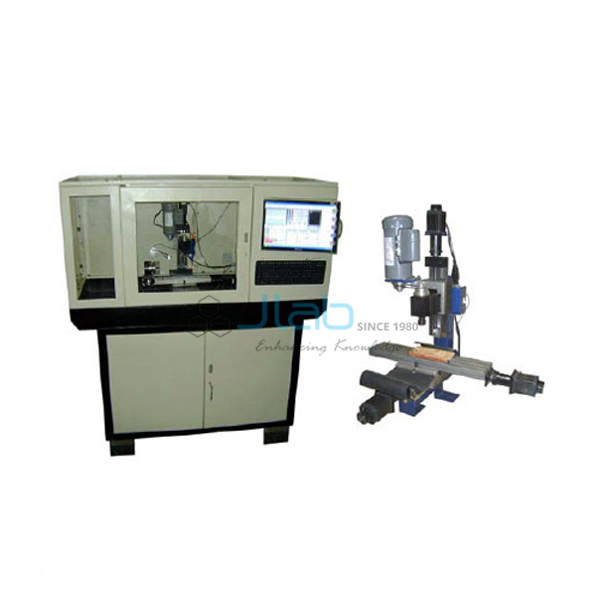

CNC Milling Machine with Cabinet and PC
Product Code : JA-CTM-9075
The CNC Milling Machine with Cabinet and PC (SKU JA-CTM-9075) is a desktop CNC milling machine mounted on a cabinet that stores the computer, controller and electrical wiring, with a coolant system and removable collector. It gives 300 mm X, 146 mm Y and 153 mm Z travel, 0.003 mm stepping resolution and a spindle speed of 1100 to 11000 rpm. Colleges use this CNC milling machine with cabinet and PC as a complete CNC milling workstation. It is supplied by JaincoLab with the PC included.
Specifications
The mill offers 300/146/153 mm travel, 0.003 mm stepping resolution, 0.01 mm mechanical repeatability and 30 in/min rapid travel, with split bronze nuts on all axes.
| Product | CNC Milling Machine with Cabinet and PC |
| SKU | JA-CTM-9075 |
| Travel | X 300 mm, Y 146 mm, Z 153 mm |
| Stepping resolution | 0.003 mm |
| Mechanical repeatability | 0.01 mm |
| Spindle speed | 1100 to 11000 rpm |
| Rapid travel | 30 in/min |
| Lead screws | 1/2 in (12.7 mm), 20 pitch, Cr-Mo, adjustable split bronze nuts on all axes |
| Slideways | Ground steel with adjustable brass gib; tapered brass gib on X axis |
| Table | Hard anodised aluminium |
| G-code | Universal standard G-code import |
| Coolant | Coolant system with removable collector |
| Cabinet | Storage for computer system, controller and electrical wiring |
| Computer | PC with monitor, keyboard and mouse; configuration confirmed on the quotation |
Applications of the cabinet CNC milling workstation
With the mill, controller, PC and coolant on one cabinet, a lab can set up a complete CNC milling station in a single position.
- CNC milling practicals in mechanical and production engineering courses
- G-code import, editing and toolpath checking on the supplied PC
- Machining small parts with coolant in aluminium, plastics and steel
- Design and prototype projects in engineering labs
Scope of supply and ordering
The listing covers the desktop CNC mill, cabinet, coolant system with removable collector, controller and PC with monitor, keyboard and mouse. The PC configuration, collets and tooling are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the PC configuration, tooling and number of stations and the delivery destination. Single workstations and CNC lab sets for colleges and tenders are supplied.
Frequently asked questions
Is a computer included?
Yes. A PC with monitor, keyboard and mouse is supplied; its configuration is confirmed on the quotation.
Does it have coolant?
Yes. A coolant system with a removable collector is fitted.
What is the working travel?
X 300 mm, Y 146 mm and Z 153 mm.
