Precision EDM Machine
Product Code : JA-CTM-9078

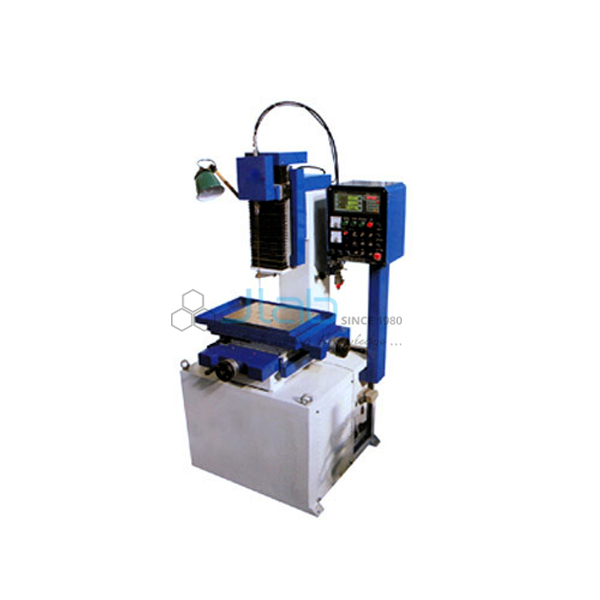

The Precision EDM Machine (SKU JA-CTM-9078) is a precision EDM machine that removes metal with electrical discharges, or sparks, to drill holes and obtain the desired shape; reverse sparking is also possible. It uses ball screws on the X and Y axes, LM guideways on Z, a DC stepper motor with belt drive and a special circuit for deep drilling, with a current booster for faster drilling. Toolrooms and engineering colleges use it for small-hole EDM work and non-conventional machining practicals. It is supplied by JaincoLab.
Specifications
The machine runs on 415 V, 3 phase, 50 Hz, drills with brass or copper electrodes from 0.3 to 3.0 mm (special electrodes from 3.1 to 10 mm), and sets coolant pressure from 0 to 100 kg/cm2.
| Product | Precision EDM Machine |
| SKU | JA-CTM-9078 |
| Power supply | 415 V, 3 phase, 50 Hz |
| Design | Two-part design, low working height |
| Axis guidance | Ball screws for X and Y axes; LM guideways for Z axis |
| Drive | DC stepper motor with belt drive |
| Drilling circuits | Special circuit for deep drilling; current booster for high-speed drilling |
| Coolant | Variable pressure setting 0 to 100 kg/cm2; SS accumulator for constant pressure; pressure switch for coolant over-pressure; water tank with SS coolant pump |
| Controller | Indigenous controller; interlock fitted |
| Electrodes | Brass electrodes 1.0 mm dia x 400 mm; brass or copper electrodes 0.3 to 3.0 mm (10 nos as listed) |
| Special electrodes | 3.1 to 10 mm, for drilling |
| Guides and fittings | Bakelite guide 1.0 mm (2 nos); ruby guide up to 3.0 mm; rubber stoppers (5 nos); machine lamp (1 no) |
Applications of the precision EDM drilling machine
Spark-erosion drilling makes small, deep holes in hard, conductive materials that are difficult to drill with twist drills.
- Small-hole drilling in hardened steel and other conductive materials
- Start holes for wire EDM and toolroom work
- Deep-hole drilling using the special deep-drilling circuit
- Non-conventional machining practicals in mechanical and production engineering courses
Scope of supply
The listing covers the EDM machine with controller, coolant tank and pump, accumulator, and the listed electrodes, bakelite and ruby guides, rubber stoppers and machine lamp. Further electrode sizes and spares are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, lead time and packing are confirmed on each quotation for the electrode sizes and number of machines and the delivery destination. Single machines for toolrooms and training centres, and tender orders, are supplied.
JaincoLab specialises in turnkey laboratory projects funded by education ministries, the World Bank and United Nations programmes, manufacturing and exporting the equipment and executing these projects successfully in many countries. Tender bidders can send their requirement list through our tenders page for a line-by-line quotation.
Frequently asked questions
What electrode sizes can it use?
Brass or copper electrodes from 0.3 to 3.0 mm, and special drilling electrodes from 3.1 to 10 mm.
What power supply is needed?
415 V, 3 phase, 50 Hz.
Can the coolant pressure be adjusted?
Yes, from 0 to 100 kg/cm2, with an SS accumulator to hold it constant.
What should a quotation request include?
Send the SKU JA-CTM-9078, the hole sizes and material, number of machines and delivery destination.
