Unijunction Transistor
Product Code : JA-AET-1465

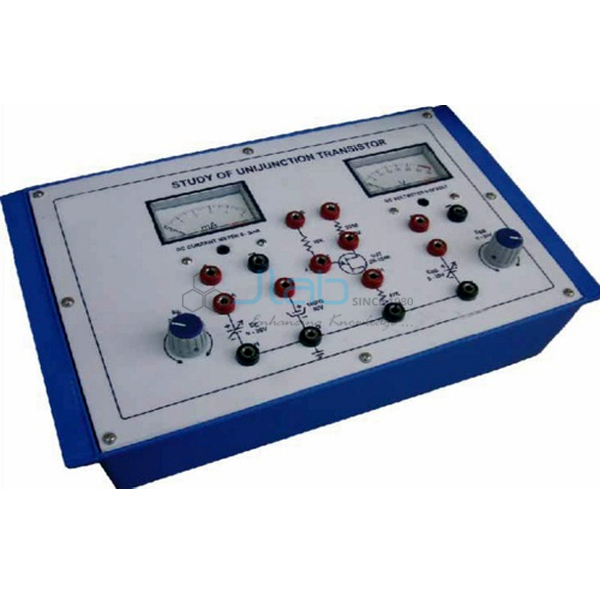

The UJT trainer is used to plot the V-I characteristics of a unijunction transistor and to use it as a relaxation oscillator. It has two 0-30 V DC, 50 mA continuously variable regulated supplies and two 65 mm rectangular-dial meters: a 0-30 V DC voltmeter and a 0-5 mA DC ammeter (SKU JA-AET-1465).
Specifications
The UJT board is listed with these parts and ratings:
| Product | Unijunction Transistor |
| SKU | JA-AET-1465 |
| DC supplies | Two 0-30 V DC at 50 mA, continuously variable, regulated |
| Voltmeter | DC, 65 mm rectangular dial, 0-30 V |
| Ammeter | DC, 65 mm rectangular dial, 0-5 mA |
| Device | Unijunction transistor (UJT) |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
| Weight | 3 kg approx. |
| Dimensions | W 340 x H 110 x D 210 mm |
| Other apparatus required | CRO 20 MHz |
UJT experiments
The listed experiments are:
- V-I characteristics of the UJT
- UJT as a relaxation oscillator, with the waveforms viewed on a 20 MHz oscilloscope
Scope of supply and ordering
The listing covers the UJT board with its two meters, patch cords and operating instructions, supplied by JaincoLab. Order quantity, packing and delivery time are set out on each quotation.
Frequently asked questions
What can be studied on the UJT board?
The V-I characteristics of the unijunction transistor and its use as a relaxation oscillator.
Which meters are fitted?
A 0-30 V DC voltmeter and a 0-5 mA DC ammeter, both with 65 mm rectangular dials.
Is an oscilloscope needed?
Yes. A 20 MHz CRO is listed as other apparatus required.
