Opto Electronic Devices
Product Code : JA-AET-1470

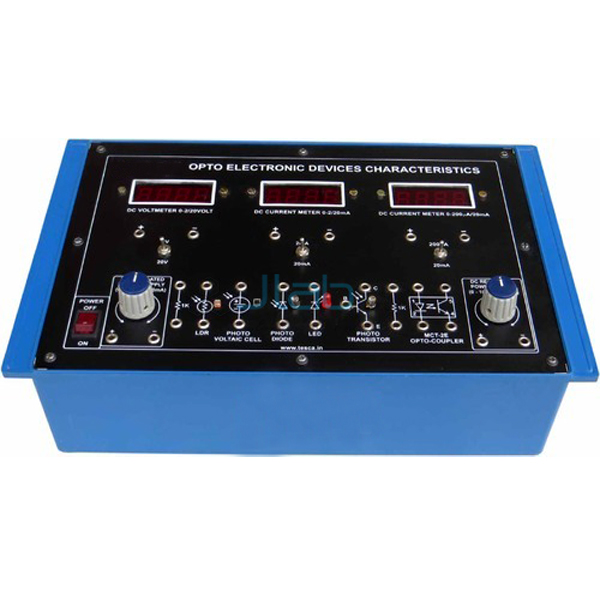

The opto-electronic devices trainer is used to study the characteristics of six devices: an LED, a photo diode, a photo transistor, an LDR, a photovoltaic cell and an opto-coupler. It has two 0-10 V DC, 100 mA continuously variable regulated supplies, a 3½ digit digital voltmeter and two 3½ digit digital current meters (SKU JA-AET-1470).
Specifications
The opto-electronics board is listed with:
| Product | Opto Electronic Devices |
| SKU | JA-AET-1470 |
| Devices | LED, photo diode, photo transistor, LDR, photovoltaic cell, opto-coupler |
| DC supplies | Two 0-10 V DC at 100 mA, continuously variable, regulated |
| Voltmeter | Digital DC, 3½ digit, dual range 2 V / 20 V |
| Current meter 1 | Digital DC, 3½ digit, dual range 2 mA / 20 mA |
| Current meter 2 | Digital DC, 3½ digit, dual range 200 microamp / 20 mA |
| Mains | 230 V ±10%, 50 Hz AC |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
| Other apparatus required | Variac 0-230 V, 50 Hz, 2 A; 40 W table lamp |
Devices characterised
Characteristics are studied for:
- Light emitting diode (LED)
- Photo diode
- Photo transistor
- Light dependent resistor (LDR)
- Photovoltaic cell
- Opto-coupler
Scope of supply and ordering
The listing covers the opto-electronic devices board with its built-in meters, patch cords and operating instructions, supplied by JaincoLab; a variac and a 40 W table lamp are listed as other apparatus required. The number of units, the packing and the dispatch time are confirmed on the quotation.
Frequently asked questions
Which opto-electronic devices are on the board?
An LED, a photo diode, a photo transistor, an LDR, a photovoltaic cell and an opto-coupler.
What light source is used?
A 40 W table lamp with a 0-230 V, 2 A variac, both listed as other apparatus required.
What current ranges are available?
One digital current meter reads 2 mA and 20 mA, the other 200 microamp and 20 mA.
