Training Board for Diode and Zener Diode
Product Code : JA-AET-1457

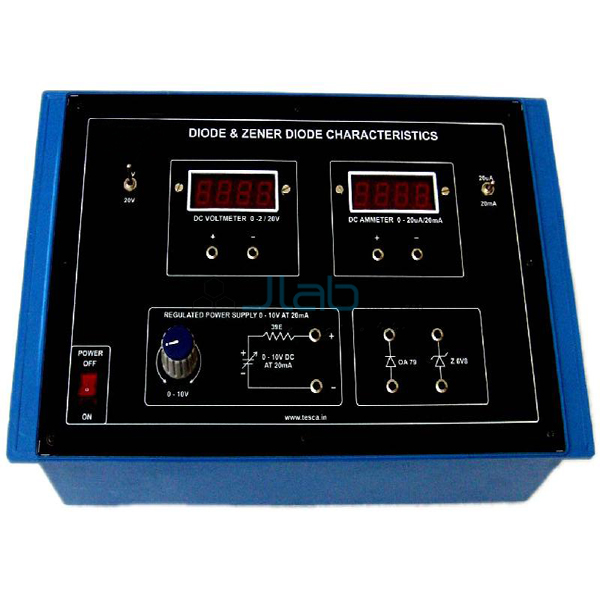

The diode and zener diode training board is used to plot the forward and reverse bias characteristics of a germanium semiconductor diode and the forward and reverse (breakdown) characteristics of a zener diode. It has a 0-10 V DC continuously variable regulated supply, a 3½ digit digital voltmeter and current meter, and both diodes mounted behind the panel (SKU JA-AET-1457).
Specifications
The diode board carries these parts and ratings:
| Product | Training Board for Diode and Zener Diode |
| SKU | JA-AET-1457 |
| DC supply | 0-10 V DC at 10 mA, continuously variable, regulated, low ripple and hum, with integral current-limiting resistor |
| Voltmeter | Digital DC, 3½ digit, dual range 2 V / 20 V |
| Current meter | Digital DC, 3½ digit, dual range (20 mA and a lower range; exact low range confirmed on the quotation) |
| Diodes | Germanium semiconductor diode and zener diode, mounted behind the panel |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
Characteristics plotted on the diode board
The listed experiments are:
- Forward and reverse bias characteristics of a germanium diode
- Forward and reverse bias (breakdown) characteristics of a zener diode
Scope of supply and ordering
The listing covers the diode and zener diode board with its built-in meters, patch cords and operating instructions, supplied by JaincoLab. Order quantity, packing and delivery time are set out on each quotation.
Frequently asked questions
Which diodes are on the board?
A germanium semiconductor diode and a zener diode, both mounted behind the panel.
Are meters built in?
Yes. A 3½ digit digital DC voltmeter with 2 V and 20 V ranges and a 3½ digit digital DC current meter are on the panel.
What supply drives the diodes?
A 0-10 V DC, 10 mA continuously variable regulated supply with an integral current-limiting resistor.
