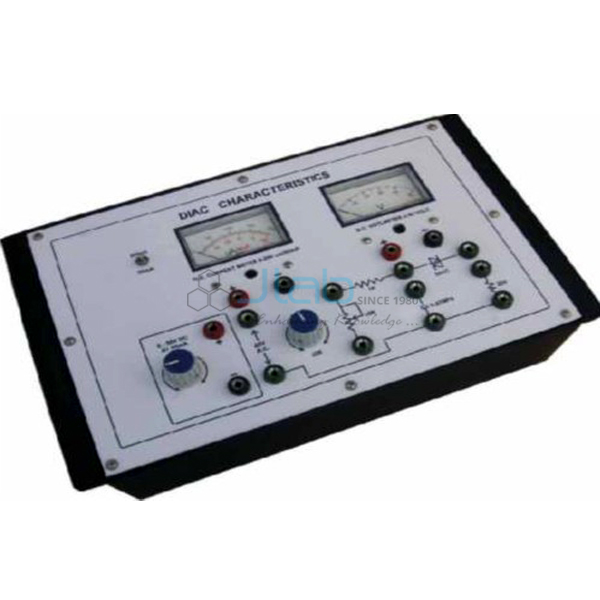

Training Board for DIAC
Product Code : JA-AET-1462
The DIAC training board is used to plot the V-I characteristics of a DIAC and study its break-over voltage, negative resistance region and VBO symmetry. It also shows the DIAC as a saw-tooth waveform generator and a pulse train generator, with a 0-50 V DC regulated supply, a 45 V AC supply and a 65 mm rectangular-dial voltmeter and ammeter built in (SKU JA-AET-1462).
Specifications
The DIAC board is listed with:
| Product | Training Board for DIAC |
| SKU | JA-AET-1462 |
| DC supply | 0-50 V DC at 50 mA, regulated |
| AC supply | 45 V AC at 50 mA, unregulated |
| Voltmeter | DC, 65 mm rectangular dial, 0-50 V |
| Ammeter | DC, 65 mm rectangular dial, switch-selectable 200 mA and 50 mA ranges |
| Device | DIAC |
| Control | Potentiometer |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
| Other apparatus required | CRO 20 MHz |
DIAC studies
The listed experiments are:
- V-I characteristics of the DIAC
- Break-over voltage (VBO)
- Negative resistance region
- VBO symmetry and delta V
- DIAC as a saw-tooth waveform generator
- DIAC as a pulse train generator
Scope of supply and ordering
The listing covers the DIAC training board with its built-in meters, patch cords and operating instructions, supplied by JaincoLab. The number of units, the packing and the dispatch time are confirmed on the quotation.
Frequently asked questions
What DIAC parameters can be studied?
The break-over voltage VBO, the negative resistance region, and VBO symmetry and delta V, from the plotted V-I characteristics.
Which applications are demonstrated?
The DIAC as a saw-tooth waveform generator and as a pulse train generator.
Are meters included?
Yes. A 0-50 V DC voltmeter and a DC ammeter with 200 mA and 50 mA ranges, both with 65 mm rectangular dials.
