Magnetic Separation
Product Code : JA-AM-6481

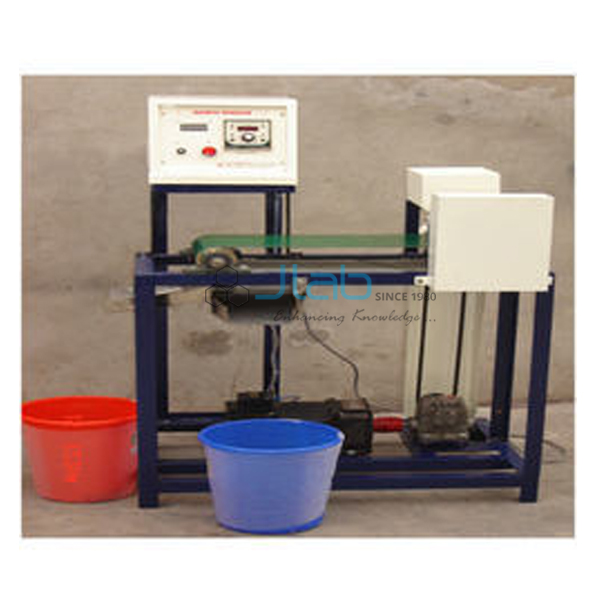

The Magnetic Separation apparatus (SKU JA-AM-6481) is a belt-type magnetic separator for studying the separation of magnetic from non-magnetic material. Feed from a continuously vibrating stainless steel hopper travels on a 150 mm wide, 500 mm long belt driven by an FHP motor with reduction gearbox past permanent magnets in a stainless steel chamber, and the two fractions drop into separate collecting bins. A weighing balance is included for efficiency tests. It is supplied by JaincoLab for chemical and mineral processing laboratories.
Specifications
The separator has a 150 x 500 mm belt, a vibrating SS feed hopper, an FHP motor with reduction gearbox, permanent magnets in a SS chamber, two collecting bins, a weighing balance and a control panel, needing single phase 220 V AC at 1 kW and 1.5 m x 1 m floor area.
| Product | Magnetic Separation |
| SKU | JA-AM-6481 |
| Belt | Width 150 mm, length 500 mm |
| Feed hopper | Stainless steel, continuously vibrating |
| Drive | FHP motor with reduction gearbox |
| Magnets | Permanent magnets in a stainless steel chamber |
| Collecting bins | 2 - magnetic and non-magnetic |
| Weighing | Weighing balance |
| Control panel | On/off switch, mains indicator |
| Utilities | Single phase 220 V AC, 1 kW; floor area 1.5 m x 1 m |
| Manual | English instruction manual |
Experiments with the magnetic separator
Students feed a weighed mixture of magnetic and non-magnetic particles, collect the two fractions and calculate the separation efficiency at different feed rates.
- Principles and operation of a magnetic separator
- Separation efficiency of a magnetic separator
- Effect of feed rate on separation
- Separating iron particles from mixtures
- Mechanical operations and mineral processing practicals
Scope of supply
This listing covers the magnetic separator with belt, vibrating hopper, drive, magnets, bins, balance, control panel and manual. Accessories, spares and quantities are confirmed on the quotation. The raw material for feed is not included.
Packing, MOQ and lead time
Minimum order quantity, packing and lead time for the Magnetic Separation are stated on the quotation once the quantity and delivery destination are known. JaincoLab supplies single laboratory orders, bulk requirements for engineering colleges and polytechnics, and tender lots.
Frequently asked questions
What type of magnets are used?
Permanent magnets held in a stainless steel chamber.
What are the belt dimensions?
150 mm wide and 500 mm long.
What utilities are required?
Single phase 220 V AC at 1 kW and a floor area of 1.5 m x 1 m.
What details are needed for a quote?
The SKU JA-AM-6481, the quantity required and the delivery destination; any detail not listed above is confirmed on the quotation.
