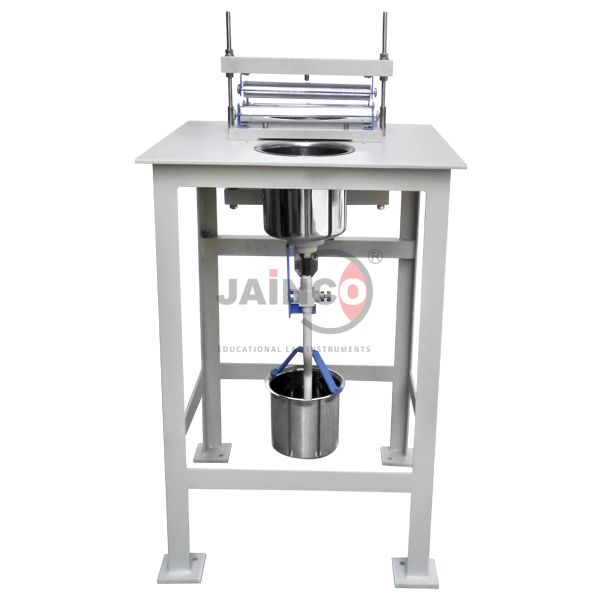

Tile Flexure Strength Testing Machine
Product Code : JA-SAAFT-9879
The Tile Flexure Strength Testing Machine (SKU JA-SAAFT-9879) measures the breaking load of clay roofing tiles and cement concrete flooring tiles in flexure. It is a double-lever machine with a leverage of 1:12 and a capacity of 200 kg, in which the load is applied by a flow of lead shot that stops automatically when the sample breaks. The sample rests between rollers of 40 mm or 12 mm diameter, as the test requires. It is supplied by JaincoLab for civil engineering and building materials laboratories.
Specifications
The machine has a capacity of 200 kg, 1:12 double-lever loading by lead shot with automatic cut-off at failure, a loading rate of 450 to 550 N/minute or 200 kg/minute, load indication within ±2% and support rollers of 40 mm or 12 mm diameter.
| Product | Tile Flexure Strength Testing Machine |
| SKU | JA-SAAFT-9879 |
| Capacity | 200 kg |
| Loading | Double lever, leverage 1:12, by flow of lead shot |
| Cut-off | Shot flow stops automatically when the sample breaks |
| Loading rate | 450-550 N/minute or 200 kg/minute |
| Load indication accuracy | Within ±2% |
| Rollers | 40 mm or 12 mm diameter |
| Tiles | Clay roofing tiles; cement concrete flooring tiles |
Experiments with the tile flexure tester
Students support the tile on the rollers, let the lead shot load the lever until the tile breaks and weigh the shot to find the breaking load and flexural strength.
- Flexural strength of clay roofing tiles
- Flexural strength of cement concrete flooring tiles
- Comparing tile batches and suppliers
- Building materials quality control
- Civil engineering materials practicals
Scope of supply and ordering
This listing covers the tile flexure strength testing machine with rollers and shot container. Accessories, spares and quantities are confirmed on the quotation. Lead shot quantity and spare rollers are confirmed on the quotation.
Lead time, MOQ and packing are set on each quotation for the ordered quantity and delivery destination. The Tile Flexure Strength Testing Machine can be ordered for a single laboratory or as part of a complete laboratory package for a college or training programme.
Frequently asked questions
What is the capacity?
200 kg, with a 1:12 double-lever system.
How is the load applied?
By a flow of lead shot that stops automatically when the sample breaks.
Which tiles can be tested?
Clay roofing tiles and cement concrete flooring tiles.
Related products
- Tile Abrasion Testing Machine
- Crushing Value Apparatus
- Aggregate Impact Tester
- Cylindrical Metal Measures
For a complete highway and concrete materials laboratory, see the aggregate testing equipment range.
Request a quote
To get a quotation for the Tile Flexure Strength Testing Machine, send SKU JA-SAAFT-9879, the quantity and the delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
