Abrasion Testing Machine
Product Code : JA-SAAFT-9874

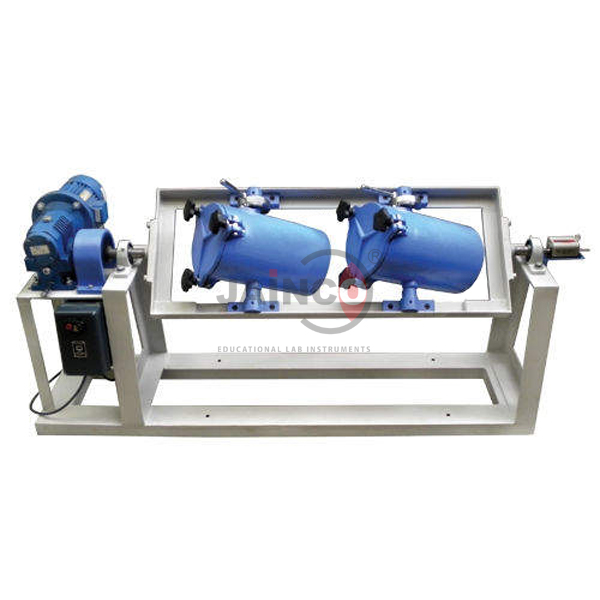

The Abrasion Testing Machine (SKU JA-SAAFT-9874) determines the abrasion value of coarse aggregates. Two hollow cylinders, closed at one end and fitted with tight covers at the other, are mounted on a shaft at 30 degrees to the axis of rotation and turned at 30 to 33 rpm through a reduction gearbox coupled to a motor, so the aggregate tumbles and wears. A revolution counter is fitted; the abrasive charge is not included. It is supplied by JaincoLab for civil engineering and highway laboratories.
Specifications
The machine has two hollow cylinders on a shaft inclined at 30 degrees, a motor and reduction gearbox giving 30-33 rpm and a revolution counter; cylinder size and motor rating are not listed in the product data and are confirmed on the quotation.
| Product | Abrasion Testing Machine |
| SKU | JA-SAAFT-9874 |
| Cylinders | 2, hollow, closed one end, tight-fitting covers |
| Mounting | On a shaft at 30 degrees to the axis of rotation |
| Speed | 30-33 rpm via reduction gearbox and motor |
| Counter | Revolution counter |
| Abrasive charge | Not included |
Experiments with the abrasion testing machine
Students load graded aggregate into the cylinders, run the specified number of revolutions and sieve the product to calculate the percentage wear.
- Abrasion value of coarse aggregates
- Wear resistance of road aggregates
- Comparing aggregate sources
- Highway materials testing
- Civil engineering practicals
Scope of supply and ordering
This listing covers the abrasion testing machine with revolution counter. Accessories, spares and quantities are confirmed on the quotation. The abrasive charge and sieves are confirmed on the quotation.
Packing, lead time and any minimum order for the Abrasion Testing Machine are confirmed per quotation according to order size and destination. Bulk orders for institutes are supplied, and export consignments to buyers in Africa, the Middle East and South and South-East Asia are quoted on request.
Frequently asked questions
How are the cylinders mounted?
On a shaft at 30 degrees to the axis of rotation.
What speed does it run at?
30-33 rpm through a reduction gearbox.
Is the abrasive charge included?
No, it is supplied without the abrasive charge.
