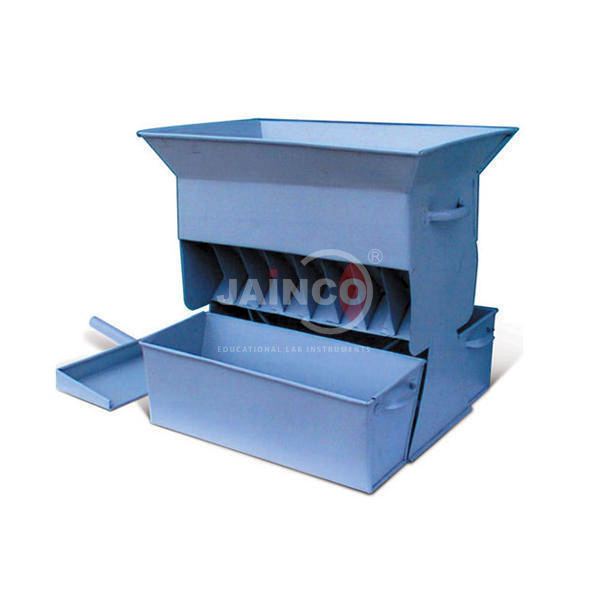

Riffle Sample Divider
Product Code : JA-SAAFT-9877
The Riffle Sample Divider (SKU JA-SAAFT-9877) reduces a bulk sample of aggregate, sand or filler to a representative test portion quickly. It is a metal box fitted with a series of equal-width chutes that discharge the material alternately in opposite directions into separate pans, and the chutes are steep enough for rapid flow. It is supplied complete with three containers, in 16-slot and 14-slot versions. This riffle sample divider is supplied by JaincoLab for civil engineering, concrete and soil laboratories.
Specifications
The divider is a metal box with equal-width chutes discharging alternately into separate pans, supplied with three containers; it is listed with 16 or 14 slots, and chute width and box size are not listed in the product data and are confirmed on the quotation.
| Product | Riffle Sample Divider |
| SKU | JA-SAAFT-9877 |
| Construction | Metal box with a series of equal-width chutes |
| Discharge | Alternately in opposite directions into separate pans |
| Versions | 16 slots or 14 slots |
| Containers | 3 supplied |
| Materials | Aggregates, sand and fillers |
Applications of the riffle sample divider
Technicians pour the sample evenly across the chutes, keep one half and repeat until the portion is the size needed for the test, giving a representative sample every time.
- Reducing aggregate samples to test size
- Representative sampling of sand and fillers
- Sample preparation for grading and density tests
- Soil sample splitting
- Civil engineering laboratory practice
Scope of supply and ordering
This listing covers one riffle sample divider in the chosen slot version with three containers. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, packing and lead time for the Riffle Sample Divider are stated on the quotation once the quantity and delivery destination are known. JaincoLab supplies single laboratory orders, bulk requirements for engineering colleges and polytechnics, and tender lots.
Frequently asked questions
How does it divide the sample?
Equal-width chutes discharge material alternately into two separate pans.
Which versions are listed?
16 slots and 14 slots.
How many containers are supplied?
Three.
