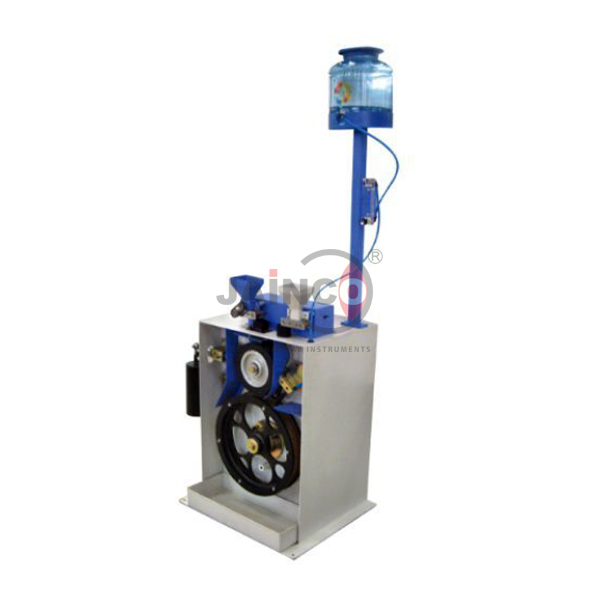

Accelerated Polishing Machine
Product Code : JA-SAAFT-9869
The Accelerated Polishing Machine (SKU JA-SAAFT-9869) polishes road aggregate specimens under controlled conditions so that their resistance to polishing by traffic can be assessed. Specimens made in accurately machined, matched moulds are fixed to a road wheel turning at 315 to 325 rpm under a load of 715 to 735 N, with corn emery and then flour emery fed at set rates with water. Used water and abrasive collect in a large removable tray. It is supplied by JaincoLab for highway and civil engineering laboratories.
Specifications
The road wheel runs at 315-325 rpm with 715-735 N on the specimens; corn emery is fed at 20-34 g/min with 20-34 ml/min of water and flour emery at 2-4 g/min with 5-8 ml/min; the machine runs on 220 V, 50 Hz single phase with thermal cut-outs and an emergency stop.
| Product | Accelerated Polishing Machine |
| SKU | JA-SAAFT-9869 |
| Road wheel speed | 315-325 rpm |
| Load on specimens | 715-735 N |
| Corn emery | Feed 20-34 g/min; water 20-34 ml/min |
| Flour emery | Feed 2-4 g/min; water 5-8 ml/min |
| Specimens | Made in accurately machined, matched moulds; mounted on the road wheel |
| Waste collection | Large removable tray |
| Electrical | 220 V, 50 Hz, single phase; thermal cut-outs; emergency stop |
Applications of the accelerated polishing machine
Technicians mount aggregate specimens on the road wheel, run the corn and flour emery stages and then measure the polished surfaces with a friction tester to rank aggregates for road surfacing.
- Polishing road aggregate specimens under controlled conditions
- Comparing aggregates for skid-resistant surfacing
- Preparing specimens for polished stone value measurement
- Highway materials research
- Civil engineering materials practicals
Scope of supply and ordering
This listing covers the accelerated polishing machine with road wheel, feed arrangements, moulds and collection tray. Accessories, spares and quantities are confirmed on the quotation. Emery abrasives and the friction tester are confirmed on the quotation.
Minimum order quantity, packing and lead time for the Accelerated Polishing Machine are stated on the quotation once the quantity and delivery destination are known. JaincoLab supplies single laboratory orders, bulk requirements for engineering colleges and polytechnics, and tender lots.
Frequently asked questions
What speed and load does it use?
The road wheel turns at 315-325 rpm with a load of 715-735 N on the specimens.
Which abrasives are fed?
Corn emery at 20-34 g/min and flour emery at 2-4 g/min, each with water.
What power supply is needed?
220 V, 50 Hz, single phase AC.
Related products
- Aggregate Impact Tester
- Los Angeles Abrasion Testing Machine
- Abrasion Testing Machine
- Crushing Value Apparatus
Browse the JaincoLab aggregate testing equipment range for other aggregate and building material test equipment.
Request a quote
For a quotation on the Accelerated Polishing Machine, share the quantity, any size or specification preference and the destination via the JaincoLab contact page; the sales team also answers at [email protected]. Tender and project enquiries can be sent through the tenders page.
