Tile Abrasion Testing Machine
Product Code : JA-SAAFT-9878

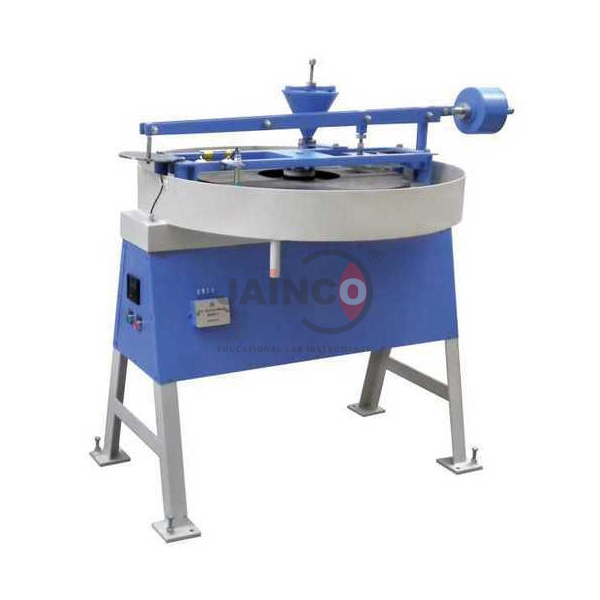

The Tile Abrasion Testing Machine (SKU JA-SAAFT-9878) measures the wear resistance of tiles. The tile sample is pressed under a set load, applied by a counterbalanced lever, against a replaceable grinding path on a disc turning about a vertical axis at 30 ± 1 rpm and strewn evenly with abrasive powder fed through a funnel. After 100 revolutions the opposite parallel face is worn for the same number, and the loss in thickness gives the abrasion resistance. It is supplied by JaincoLab for civil engineering and building materials laboratories.
Specifications
The machine has a replaceable grinding path on a disc rotating at 30 ± 1 rpm inside a circular tray, counterbalanced lever loading and an abrasive funnel; disc diameter, load and motor are not listed in the product data and are confirmed on the quotation.
| Product | Tile Abrasion Testing Machine |
| SKU | JA-SAAFT-9878 |
| Grinding path | Replaceable, on a disc rotating about a vertical axis |
| Speed | 30 ± 1 rpm |
| Loading | Counterbalanced lever |
| Abrasive | Powder fed through a funnel |
| Enclosure | Circular tray around disc and path |
| Test sequence | 100 revolutions per face, on two parallel faces |
Experiments with the tile abrasion machine
Students measure tile thickness, abrade one face and then the opposite face for 100 revolutions each under load, and calculate the average wear.
- Abrasion resistance of floor tiles
- Comparing tile products and batches
- Wear of paving and terrazzo tiles
- Building materials quality control
- Civil engineering materials practicals
Scope of supply and ordering
This listing covers the tile abrasion testing machine with grinding path, lever loading and funnel. Accessories, spares and quantities are confirmed on the quotation. Abrasive powder and thickness gauge are confirmed on the quotation.
Packing, lead time and any minimum order for the Tile Abrasion Testing Machine are confirmed per quotation according to order size and destination. Bulk orders for institutes are supplied, and export consignments to buyers in Africa, the Middle East and South and South-East Asia are quoted on request.
Frequently asked questions
At what speed does the disc turn?
30 ± 1 rpm.
How is the load applied?
Through a counterbalanced lever.
How many revolutions are used?
100 revolutions on one face, then the same on the opposite face.
