Cylindrical Metal Measures
Product Code : JA-SAAFT-9872

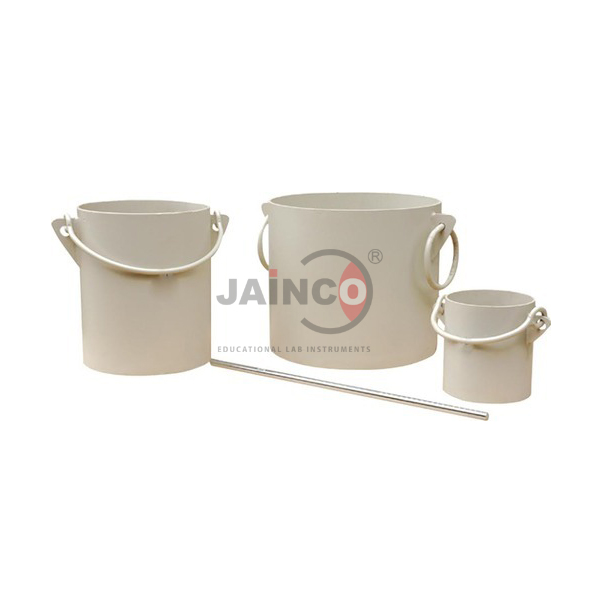

The Cylindrical Metal Measures (SKU JA-SAAFT-9872) are a set of three measures, of 3 litres, 15 litres and 30 litres, for determining the bulk density and voids of aggregates. They are supplied complete with a tamping rod of 16 mm diameter and 60 cm length for compacting the aggregate in layers. This set of cylindrical metal measures is supplied by JaincoLab for civil engineering, concrete and highway laboratories in polytechnics and engineering colleges.
Specifications
The set contains one each of 3, 15 and 30 litre cylindrical metal measures and a 16 mm x 60 cm tamping rod; metal, wall thickness and inside dimensions are not listed in the product data and are confirmed on the quotation.
| Product | Cylindrical Metal Measures |
| SKU | JA-SAAFT-9872 |
| Measures | One each: 3 litres, 15 litres, 30 litres |
| Tamping rod | 16 mm diameter x 60 cm |
| Use | Bulk density and voids of aggregates |
Experiments with the cylindrical metal measures
Students fill the measure suited to the aggregate size in layers, tamp each layer with the rod, strike off and weigh to calculate the compacted or loose bulk density.
- Loose and compacted bulk density of aggregates
- Percentage voids in aggregates
- Selecting measure size by maximum aggregate size
- Concrete mix design data
- Civil engineering materials practicals
Scope of supply and ordering
This listing covers the set of three cylindrical measures with tamping rod. Accessories, spares and quantities are confirmed on the quotation. Balance and straight edge are confirmed on the quotation.
MOQ, lead time and packing for the Cylindrical Metal Measures are confirmed on each quotation for the quantity and delivery destination. Single units for one laboratory and complete sets for institutions or projects are both supplied.
Frequently asked questions
Which sizes are in the set?
3 litre, 15 litre and 30 litre measures, one of each.
Is a tamping rod included?
Yes, a 16 mm diameter, 60 cm long tamping rod.
What are they used for?
Bulk density and voids of aggregates.
Related products
See the complete aggregate testing equipment range for related sand, aggregate and filler testing apparatus.
Request a quote
Request pricing for the Cylindrical Metal Measures (SKU JA-SAAFT-9872) through the JaincoLab contact page, stating the quantity and where it is to be delivered, or write to [email protected]. For tender or project supply, see our tenders page.
