Sterility Test Unit
Product Code : JA-SI-6537

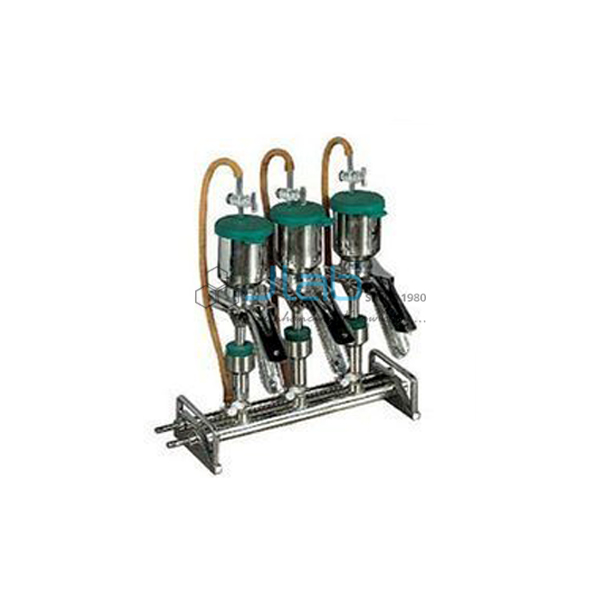

The Sterility Test Unit (SKU JA-SI-6537) is a manifold membrane filtration system for sterility testing where the membrane is taken out of the holder afterwards and incubated in culture media. Stainless steel holders for 47 mm membrane filters sit on a manifold, joined to flushing-tube outlets by silicone tubing and glass stopcocks. Each holder has a filtration area of 12.5 sq cm and holds 250 ml.
Specifications
Values from the product data:
| Product | Sterility Test Unit |
| SKU | JA-SI-6537 |
| Filter holders | Stainless steel, on a manifold, for 47 mm membranes |
| Connections | Silicone tubing and glass stopcocks to flushing outlets |
| Filtration area | 12.5 sq cm |
| Holding capacity | 250 ml |
| Vacuum | Via a vacuum-resistant flask or Woulff bottle between manifold and pump |
| Operation | Vacuum for filtration, slight pressure for flushing liquids |
Scope of supply and ordering
The manifold and holders are supplied; the vacuum pump and trap flask are separate. Quantities and packing are confirmed on the quotation.
Frequently asked questions
What happens to the membrane after filtration?
It is removed from the holder and incubated in culture media.
What is the filtration area of each holder?
12.5 sq cm, with a holding capacity of 250 ml.
