Fixed Condenser Boxes
Product Code : JA-SI-8085

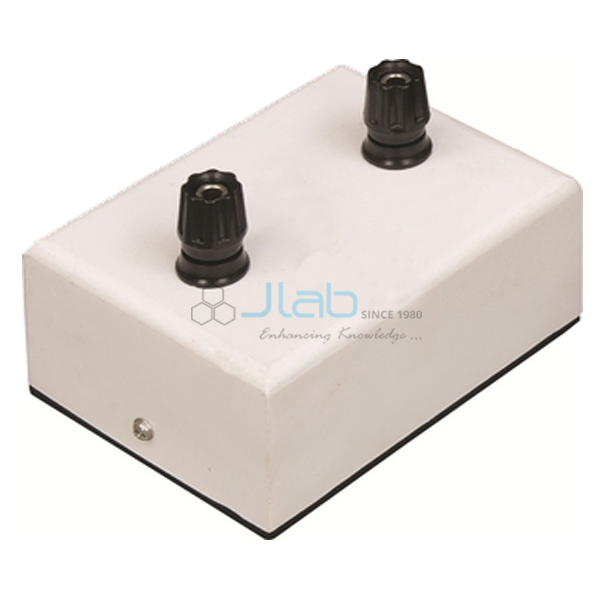

Fixed Condenser Boxes (SKU JA-SI-8085) give a single known capacitance between two 4 mm socket terminals, for use in AC bridge, charging and time-constant experiments. Values from 0.01 to 2 mfd use paper polyester capacitors rated at 250 V working; values from 5 to 40 mfd use electrolytic capacitors rated at 350 V working. The condensers (silver mica, paper polyester or metal film types) are mounted on a plastic plate inside a sturdy case.
Specifications
Values and ratings as given in the product data:
| Product | Fixed Condenser Boxes |
| SKU | JA-SI-8085 |
| Terminals | Two 4 mm socket terminals |
| 0.01 to 2 mfd | Paper polyester capacitors, 250 V working |
| 5 to 40 mfd | Electrolytic capacitors, 350 V working |
| Condenser types | Silver mica, paper polyester, metal film |
| Mounting | Plastic plate in a sturdy case |
Scope of supply and ordering
Each box carries one capacitance value, so state the values and the number of boxes of each when you enquire; packing is confirmed on the quotation.
Frequently asked questions
Which capacitance values are available in the fixed condenser boxes?
Values from 0.01 to 2 mfd in paper polyester and from 5 to 40 mfd in electrolytic capacitors.
What working voltage do the boxes have?
250 V for the 0.01-2 mfd boxes and 350 V for the 5-40 mfd boxes.
Related products
Capacitance, inductance and resistance boxes are grouped in our scientific instrument range.
Request a quote
Tell us the capacitance values and quantities for the fixed condenser boxes on the contact page. Tender and project enquiries can be sent through the tenders page.
