Conductivity attachment
Product Code : JA-SI-8051

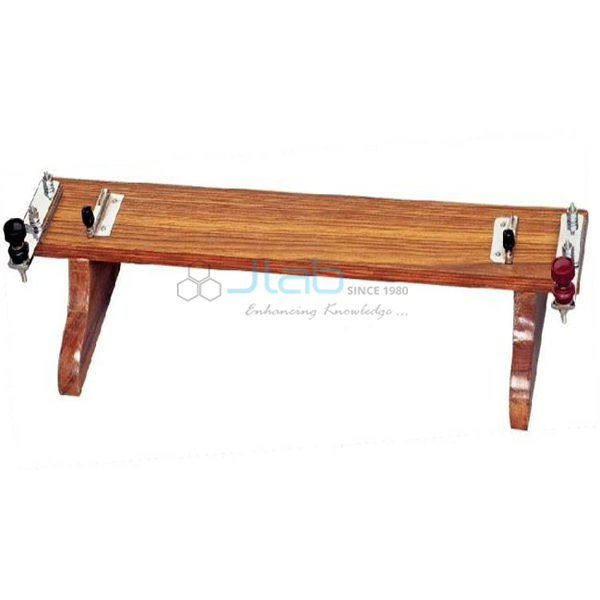

The Conductivity Attachment (SKU JA-SI-8051) holds a metal specimen so that its low resistance, and from that its conductivity, can be measured with a four-terminal method. It accepts specimens in the form of wires, rods and strips, from a 1/2 inch diameter rod down to 42 SWG wire. The potential points are 50 cm apart, and separate current and potential terminals keep contact resistance out of the reading.
Specifications
The listing gives these details:
| Product | Conductivity attachment |
| SKU | JA-SI-8051 |
| Specimens | Wires, rods, strips |
| Specimen size | 1/2 inch diameter rod to 42 SWG wire |
| Potential points | 50 cm apart |
| Terminals | Separate current and potential terminals |
Scope of supply and ordering
The attachment is supplied on its own; the bridge used with it is a separate item. Quantities and packing are confirmed on the quotation.
Frequently asked questions
What specimens does the conductivity attachment take?
Wires, rods and strips, from a 1/2 inch diameter rod to 42 SWG wire.
How far apart are the potential points?
50 cm, with separate current and potential terminals.
