Pulse Code Modulation and Demodulation Trainer
Product Code : JA-CT-1506

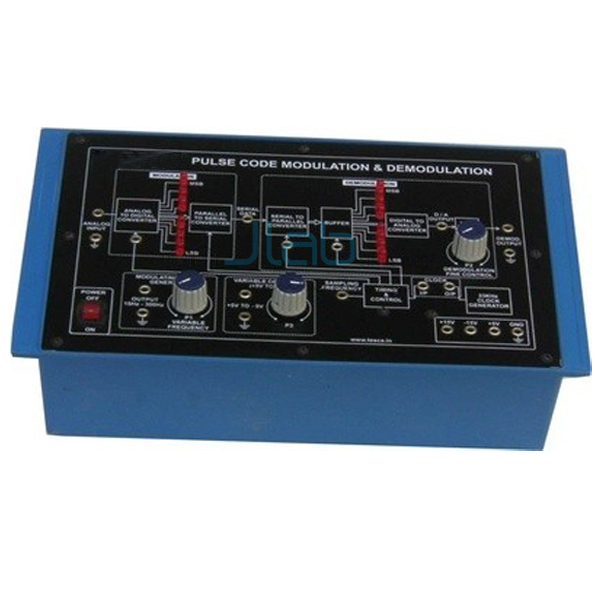

The pulse code modulation and demodulation trainer is used to study PCM encoding and decoding of a low-frequency signal. It has a 15-300 Hz modulating signal generator, a 33 kHz TTL clock generator, a PCM encoder and decoder with LED data display, a variable +5 V to -9 V DC output and 5 V and ±15 V regulated supplies (SKU JA-CT-1506).
Specifications
Built-in sections and ratings:
| Product | Pulse Code Modulation and Demodulation Trainer |
| SKU | JA-CT-1506 |
| DC supplies | 5 V DC and ±15 V DC at 100 mA, IC regulated, internally connected |
| Variable DC output | +5 V to -9 V |
| Clock generator | TTL, 33 kHz |
| Modulating signal generator | 15 Hz to 300 Hz |
| Circuits | PCM encoder; PCM decoder |
| Data display | LEDs |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
| Other apparatus required | CRO 20 MHz |
Scope of supply and ordering
The listing covers the PCM trainer with patch cords and operating instructions, supplied by JaincoLab. Packing, lead time and the quantity per order are agreed on the quotation.
Frequently asked questions
What modulating frequencies does the PCM trainer use?
An on-board generator from 15 Hz to 300 Hz.
Can the PCM code be seen?
Yes. The encoded data is shown on LEDs.
What clock is used?
A built-in 33 kHz TTL clock generator.
