Differential Phase Shift Keying Modulation and Demodulation
Product Code : JA-CT-1509

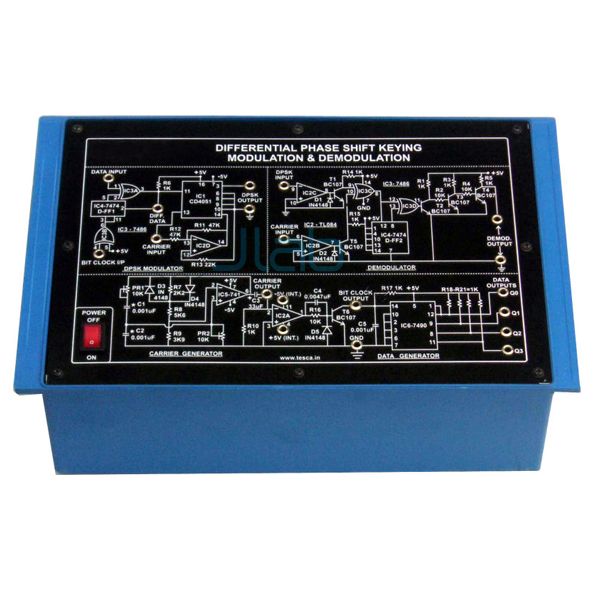

The DPSK modulation and demodulation board generates a differential phase shift keyed signal and demodulates it. Separate ICs generate the DPSK signal, the carrier signals, the bit clock and the data patterns, while further gate and D flip-flop ICs with three transistors form the demodulator, all powered by a ±5 V DC, 100 mA regulated supply (SKU JA-CT-1509).
Specifications
Listed parts of the DPSK board:
| Product | Differential Phase Shift Keying Modulation and Demodulation |
| SKU | JA-CT-1509 |
| DC supply | ±5 V DC at 100 mA, IC regulated, internally connected |
| Modulator | ICs for the DPSK signal, carrier signals, bit clock and data |
| Demodulator | Gate ICs, a D flip-flop and three transistors |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
| Other apparatus required | Dual trace CRO 20 MHz |
Scope of supply and ordering
The listing covers the DPSK board with patch cords and operating instructions, supplied by JaincoLab. Pack quantities, packing method and lead time are fixed on the quotation.
