Digital Time Division Multiplexing and Demultiplexing
Product Code : JA-CT-1505

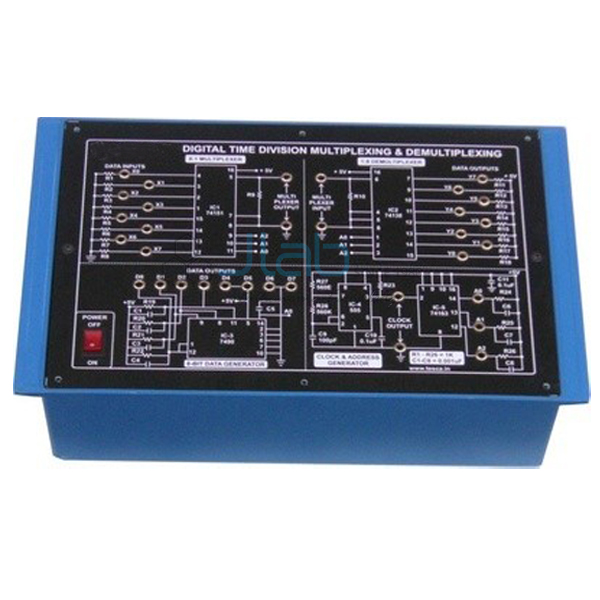

The digital time division multiplexing trainer is used to study how several digital data channels share one line by time division multiplexing and are separated again. It has an 8-bit data generator, a clock and address generator, an 8:1 multiplexer and a 1:8 demultiplexer, with a ±5 V DC, 100 mA regulated supply (SKU JA-CT-1505).
Specifications
The TDM board carries:
| Product | Digital Time Division Multiplexing and Demultiplexing |
| SKU | JA-CT-1505 |
| DC supply | ±5 V DC at 100 mA, IC regulated, internally connected |
| Multiplexer | 8:1 |
| Demultiplexer | 1:8 |
| Data generator | 8-bit |
| Timing | Clock and address generator |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
| Other apparatus required | Dual trace CRO 20 MHz |
Scope of supply and ordering
The listing covers the TDM board with patch cords and operating instructions, supplied by JaincoLab. Order quantity, packing and delivery time are set out on each quotation.
Frequently asked questions
How many channels does the TDM board multiplex?
Eight, using an 8:1 multiplexer and a 1:8 demultiplexer.
Where does the test data come from?
An on-board 8-bit data generator with a clock and address generator.
Which oscilloscope is needed?
A dual trace 20 MHz CRO.
