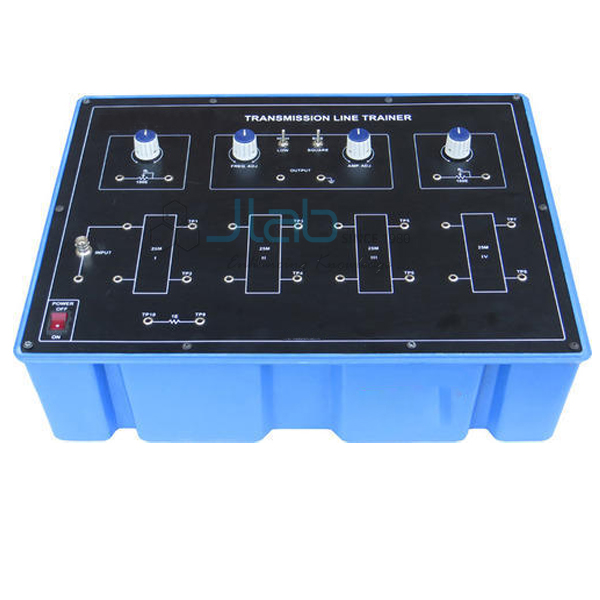

Transmission Line Trainer
Product Code : JA-CT-1504
The transmission line trainer uses four 25 m coaxial cables, 100 m in all, to measure line characteristics, attenuation, input impedance, the phase between current and voltage, frequency response, stationary waves, phase shift along the line, fault location and pulse behaviour. A built-in sine/square signal generator covers 40 kHz to 4 MHz in two bands, and two potentiometers match the line impedance (SKU JA-CT-1504).
Specifications
The transmission line trainer is listed with:
| Product | Transmission Line Trainer |
| SKU | JA-CT-1504 |
| Line | 4 coaxial cables of 25 m each; 100 m total |
| Impedance matching | Two potentiometers |
| Signal generator | Sine/square; 40 kHz to 4 MHz in two bands (40-400 kHz, 400 kHz-4 MHz); frequency and amplitude potentiometers |
| Switches | SPDT for sine or square; SPDT for high or low band |
| Input | BNC connector |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
| Other apparatus required | CRO 20 MHz |
Measurements on the line
The listed measurements are:
- Characteristics and attenuation of the line
- Input impedance
- Phase displacement between current and voltage at the line input
- Frequency characteristic
- Stationary waves
- Signal phase shift along the line
- Fault localisation
- Line under pulsed conditions
Scope of supply and ordering
The listing covers the transmission line trainer with its 100 m of coaxial line, patch cords and operating instructions, supplied by JaincoLab. Quantities, packing and lead time are confirmed on the quotation.
Frequently asked questions
How long is the transmission line?
100 m, made up of four 25 m coaxial cables.
What signal source is built in?
A sine/square generator from 40 kHz to 4 MHz in two bands, with frequency and amplitude controls.
Can faults be located on the line?
Yes. Fault localisation within the line is one of the listed measurements.
