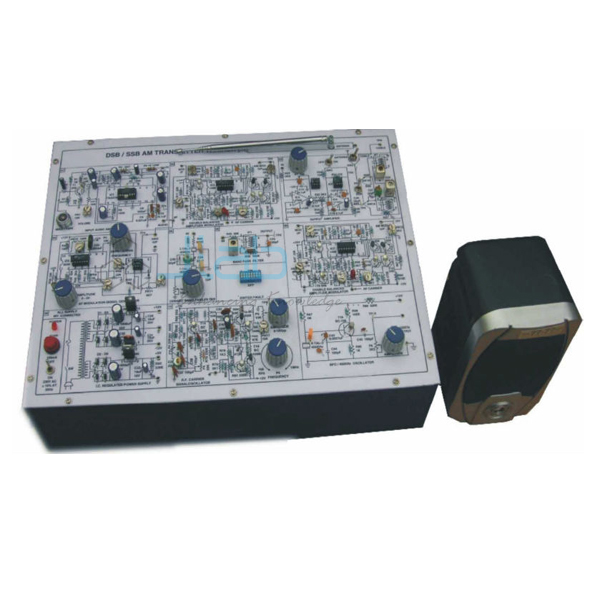

DSB and SSB AM Receiver Trainer
Product Code : JA-CT-1511
The DSB and SSB AM receiver trainer is a superheterodyne receiver covering 980 kHz to 1650 kHz with a 455 kHz IF, used to study DSB reception with a diode (envelope) detector, SSB reception with a product detector, AGC, tuned circuits, image frequencies, and receiver sensitivity, selectivity and fidelity. It receives through a telescopic antenna or a cable and has 8 switched faults and 50 test points (SKU JA-CT-1511).
Specifications
The receiver trainer is listed with:
| Product | DSB and SSB AM Receiver Trainer |
| SKU | JA-CT-1511 |
| Frequency range | 980 kHz to 1650 kHz |
| Intermediate frequency | 455 kHz |
| Stages | RF amplifier; mixer; local oscillator; 1st and 2nd amplifiers; envelope detector (AGC); product detector; BFO; 455 kHz crystal oscillator; audio output amplifier with volume control |
| Detectors | Diode detector (DSB); product detector (SSB) |
| Receiving media | Telescopic antenna or cable |
| Tuning | Variable capacitor |
| Power supply | ±12 V DC and +5 V DC, IC regulated |
| Switched faults | 8 |
| Test points | 50 |
| Accessories | Loudspeaker in a baffle box with 2 m lead and 2 mm banana pins; 2 mm patch cords |
| Power | 230 V AC, 50 Hz; ON/OFF switch, fuse and LED |
| Other apparatus required | CRO 20 MHz |
Receiver experiments
The listed experiments are:
- DSB AM reception with an envelope detector via cable and via antenna
- SSB AM reception with a product detector
- Sensitivity and selectivity of a radio receiver
- Image frequencies
- Voice transmission with DSB AM transmission and reception
- AGC and receiver tuned circuits
Scope of supply and ordering
The listing covers the AM receiver trainer with its telescopic antenna, loudspeaker box, patch cords and operating instructions, supplied by JaincoLab; the matching transmitter trainer is listed separately (SKU JA-CT-1510). Quantities, packing and delivery lead time are stated on each quotation.
Frequently asked questions
What frequency range does the receiver tune?
980 kHz to 1650 kHz, with a 455 kHz intermediate frequency and variable-capacitor tuning.
How are DSB and SSB signals detected?
DSB with a diode (envelope) detector and SSB with a product detector, using the on-board BFO.
Can signals be received over the air?
Yes. The receiver works from a telescopic antenna or through a cable.
