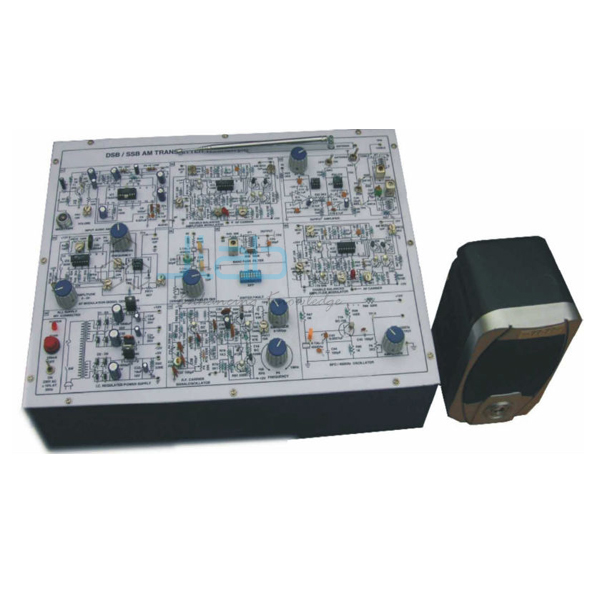

DSB and SSB AM Transmitter Trainer
Product Code : JA-CT-1510
The DSB and SSB AM transmitter trainer is used to study carrier generation, DSB and SSB AM generation and transmission, and transmitter tuned circuits. It has a 300 Hz-3.4 kHz AF generator, a 100 kHz-1 MHz RF carrier oscillator, two double balanced modulators, a 452-458 kHz ceramic band pass filter, a 455 kHz BFO and an output amplifier giving DSB at 1 MHz and SSB at 1.445 MHz to an antenna or cable (SKU JA-CT-1510).
Specifications
Specifications listed for the transmitter trainer:
| Product | DSB and SSB AM Transmitter Trainer |
| SKU | JA-CT-1510 |
| AF generator | Sine, 300 Hz to 3.4 kHz, 0 to 5 Vpp |
| RF carrier oscillator | 100 kHz to 1 MHz, 0 to 10 Vpp |
| Modulators | Two double balanced amplitude modulators |
| Filters | Ceramic band pass filter 452-458 kHz; one further band pass filter |
| BFO | 455 kHz |
| Output amplifier | Gain adjustable; DSB 1 MHz, SSB 1.445 MHz, to antenna or cable |
| Audio input | Input amplifier with volume control for microphone or tape recorder |
| Power supply | ±12 V DC and +5 V DC, IC regulated |
| Switched faults | 8 |
| Test points | 27 |
| Accessories | Dynamic microphone with 4 mm jack pin |
| Power | 230 V AC, 50 Hz; ON/OFF switch, fuse and jewel light |
| Other apparatus required | CRO 20 MHz |
Transmitter studies
The listed studies are:
- Carrier frequency generation
- DSB and SSB AM generation and transmission
- Transmitter tuned circuits
Scope of supply and ordering
The listing covers the AM transmitter trainer with its microphone and operating instructions, supplied by JaincoLab; the matching receiver trainer is listed separately (SKU JA-CT-1511). The number of units, the packing and the dispatch time are confirmed on the quotation.
Frequently asked questions
At what frequencies does the transmitter output DSB and SSB?
DSB at 1 MHz and SSB at 1.445 MHz, through a gain-adjustable output amplifier to an antenna or cable.
Which filters and oscillators are fitted?
A 452-458 kHz ceramic band pass filter, a further band pass filter and a 455 kHz BFO, besides the AF and RF generators.
How many switched faults are there?
Eight, with 27 test points on the board.
