Plunger Pump Demonstration Unit
Product Code : JA-FMAHLE-9971

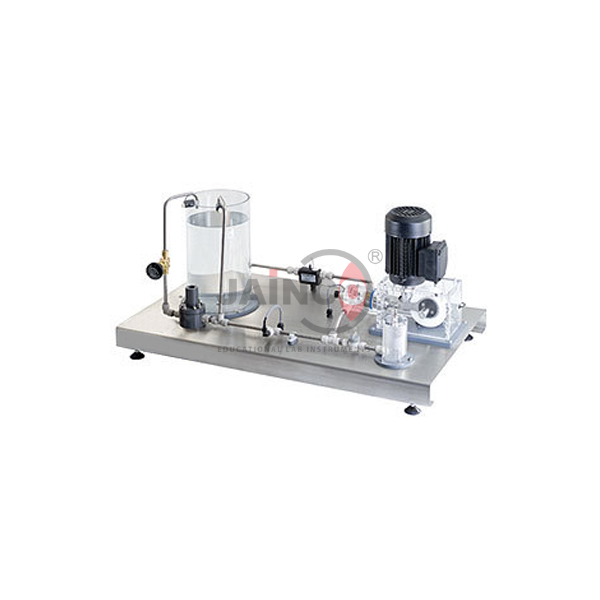

The Plunger Pump Demonstration Unit (SKU JA-FMAHLE-9971) is a small-scale reciprocating pump set-up for showing how a plunger pump works and how its delivery pulsates. A transparent pump head, water reservoir, control valve, relief valve and pipework are mounted on a stainless steel base, and sensors record cylinder pressure against plunger position. JaincoLab supplies this plunger pump demonstration unit to engineering colleges and polytechnics for hydraulic machines practicals.
Specifications
The unit carries sensors for cylinder pressure, plunger position, pump outlet pressure and cumulative flow, a pulsation damping facility, and a sprung loading valve and needle valve for loading the pump; motor rating, stroke and flow rate are not listed and are confirmed on the quotation.
| Product | Plunger Pump Demonstration Unit |
| SKU | JA-FMAHLE-9971 |
| Layout | Water reservoir, plunger pump, control valve, relief valve and interconnecting pipework on a stainless steel base |
| Pump head | Transparent |
| Sensors | Cylinder pressure, plunger position, pump outlet pressure, cumulative flow |
| Loading | Sprung loading valve and needle valve |
| Pulsation | Pulsation damping facility |
| Computer link | PC link (computer not supplied) via an interface console listed as an essential accessory; USB lead, software with set-up and teaching instructions, data logging and graphs |
| Motor, stroke and flow ratings | Confirmed on the quotation |
Applications of the plunger pump demonstration unit
The plunger pump demonstration unit lets students plot cylinder pressure against plunger position, see the effect of loading and pulsation damping on the delivery, and compare a reciprocating pump with rotodynamic and gear pumps in hydraulic machines practicals.
- Demonstrating the working cycle of a plunger pump
- Plotting cylinder pressure against plunger position
- Studying the effect of the loading valves and pulsation damping on delivery
- Hydraulic machines practicals in mechanical engineering degree and diploma courses
Scope of supply and ordering
The listing covers the plunger pump demonstration unit with reservoir, valves, sensors and software. The interface console is an essential accessory and, with the computer, is confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of units and the delivery destination. The unit is supplied by JaincoLab singly or with the other pump and fan demonstration units for colleges and tender orders.
Frequently asked questions
What does the unit measure?
Cylinder pressure, plunger position, pump outlet pressure and cumulative flow.
How is the pump loaded?
With a sprung loading valve and a needle valve.
Is a computer or interface included?
No. The interface console is an essential accessory and the computer is not supplied; both are confirmed on the quotation.
Related products
- Gear Pump Demonstration Unit
- Centrifugal Pump Demonstration Unit
- Series and Parallel Pumps Demonstration Unit
- Axial Fan Demonstration Unit
Pump, fan and turbine demonstration units are listed in the JaincoLab fluid mechanics lab equipment range.
Request a quote
To order the Plunger Pump Demonstration Unit, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
